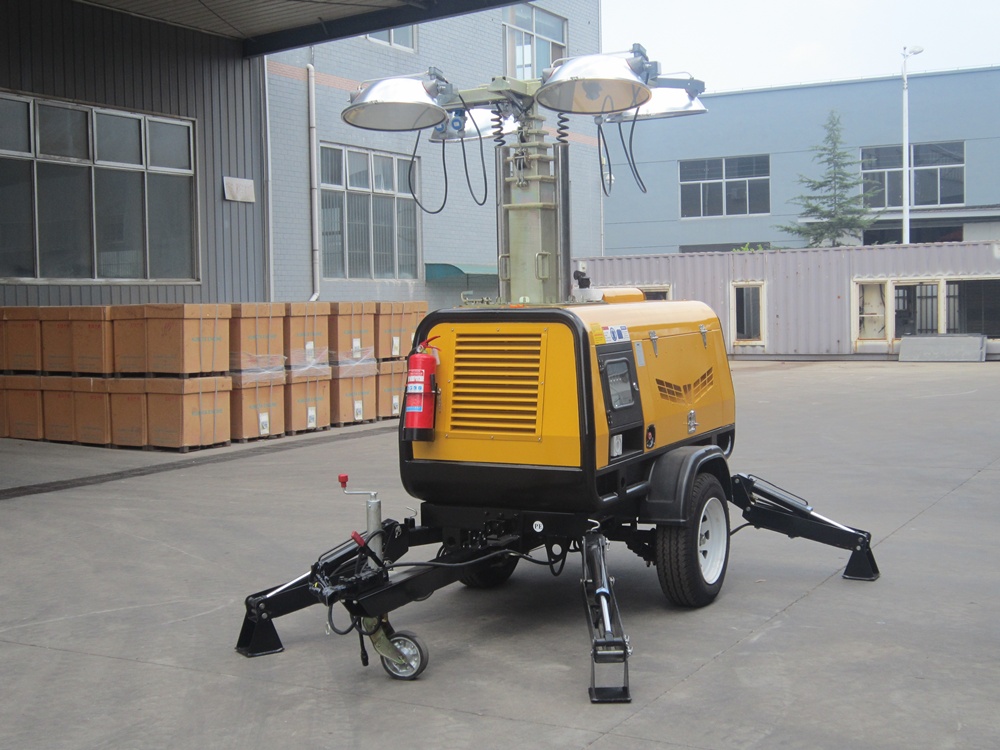

GTLT 09HVL-P4000
Engine D905
Metal Halide Floodlight
Hydraulic Mast extension
Manual Mast Rotation
Manually Stabilizing Legs
GTLT 09HVL-P4000
| Standard Items | GTLT 09HVL/P 4000 | |
| Length | 3420mm (11'2'') | |
| Width | 2800mm (9'2'') | |
| Height | 2460mm (8'1'') | |
| Full Extending Height(m/feet) | 8.84m (29') | |
| Gross Weight | 1410kg (3110 lb) | |
| Engine Model | D1105(KUBOTA) | |
| Speed(rpm) | 1500/1800 | |
| Number of Cylinders | 3 | |
| Engine Characters | 4 cycles, Watercooled diesel | |
| Combustion System | E-TVS | |
| Engine Aspiration | Naturally aspirated | |
| Emission Level | Regular | |
| Standard Configuration | SPARKS | |
| Frequency(Hz) | 50/60 | |
| Rating Voltage（50/60 Hz） | 230/240-120 VAC | |
| Alternator Insulation | Class H | |
| Alternator Protection Grade | IP23 | |
| Type of Lights | Regular metal halide | |
| Light's Fixture | Rectangle(GEWISS) | |
| Luminous Flux | 110000 LM/light | |
| Number & Power of Lights | 4*1000W | |
| Number of Mast Sections | 7 | |
| Mast Extension | Hydraulic | |
| Mast Rotation | Manually, max.330° lockable | |
| Light BarTilt | 12VDC Electric linear actuator | |
| Trailer Suspension & Axle with Brakes | Leaf springs & single axle with mechanical brakes | |
| Tow Bar | Retractable & adjustable supporting wheel tow bar | |
| Stabilizing Legs & Number | 4 pcs extendable bar with manually retractable jacks | 4 pcs hydraulic pivot legs |
| Wheel's Rim Size& Tires | 16'' rim with regular tires | |
| Tow Adapter | 2'' or 50 mm ball adapter | |
| Tail Lights | Tail light kit | |
| Max Towing Speed | 100km/h (62 mph) | |
| Fuel Tank Type | Double wall sub-fueltank | |
| Fuel Tank Capacity | 120 liters (31 US gallons) | |
| Operating Hours with Full Fuel | 84 hours | |
| Wires & Electric Components | Regular | |
| Generator Controller | DSE 702AS | |
| Max. against Wind When Fully Extended | 20 m/s (45 mph) | |
| Acoustic Pressure | 72dB(A) at 7m (23') away | |
| Standard Colour | Orange trunk, black or galvanized all of the steel componets | |
| Max. # of Units Loading in a 40' High Containe | 7 | |
| Applicable for | |||||||||
| Applicable for most of inside and outside place. Asphalt paving, disaster relief, repair and maintenance of water supply, gasoline, tunnels, and mines, waste disposal, parking lot, wharf, civil and military airport, as well as various illuminations for combat readiness. | |||||||||
| Installed with generator, the light tower works with convenient power supply | |||||||||
| Night construction condition has been improved to raise working efficiency and speed. |
| Characteristic: | |||||||||
| Composed by four 1000W Metal halides, have high lumen output, good color rendition and overall lighting, long lamp life. | |||||||||
| Lamp frame can rotate horizontal and freely, each lamp can vertical adjust lonely. | |||||||||
| Telescope mast use three section, automatic lift. mast with staleness valve, avoid to drop suddenly. Mast can extend to 7.2 meters（height can be change）. | |||||||||
| Installed with generator, one tank gasoline can last 13 hours. If use city power, it’s long term. | |||||||||
| Equipped with big tyres and brake system, increasing its capacity to climb and trail to move on uneven road. Big tyres also increase touchdown areas to oppose wind beating. | |||||||||
| Using waterproof electrical boxes to avoid rain, suit for bad condition | |||||||||
| To satisfy customer requirement, we can produce this tower according to your requirement, such as lamp quantity, power, mast height, generator etc. |
