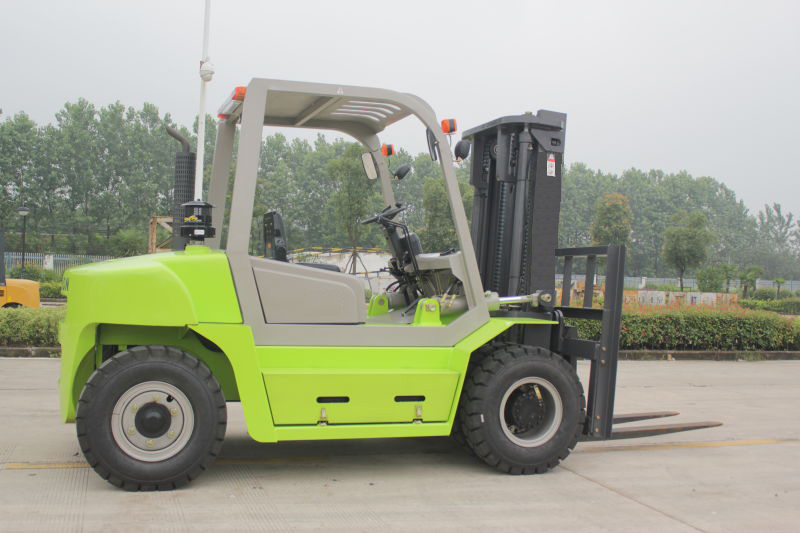

GTFD60/70/80//120/160-Z Diesel Forklift
Diesel Forklift
GTFD60/70/80//120/160-Z Diesel Forklift
| Specifications | unit | FD70 | ||
| Characteristics | Power | diesel | ||
| Rated Capacity | kg | 7000 | ||
| Center of load | mm | 600 | ||
| Lifting height | mm | 3000 | ||
| Free lifting height | mm | 218 | ||
| Forks L×W×H | mm | 1220×150×70 | ||
| Tilt Forward/Backward | 。 | 6月12日 | ||
| Min.turning radius | mm | 3370 | ||
| Min.ground clearance(Mast) | mm | 200 | ||
| Overhead guard height | mm | 2460 | ||
| Height from seat to overhead guard | mm | 1050 | ||
| Front overhang | mm | 625 | ||
| Perf | Max.traveling speed(loaded) | km/h | 26 | |
| Max.lifting speed（loaded/empty） | mm/s | 370/450 | ||
| Drawbar pull/Gradeability | kN/% | 51.4/20 | ||
| Dimensions | Overall length （without fork） | mm | 3466 | |
| Overall width | mm | 2235 | ||
| Mast lowered height | mm | 2500 | ||
| Mast extended height | mm | 4417 | ||
| Chassis | Tire | Front | 8.25-15-14PR | |
| Rear | 8.25-15-14PR | |||
| Wheelbase | mm | 2250 | ||
| Tread width | Front/Rear | mm | 1470/1700 | |
| Curb weight | None-load | kg | 9340 | |
| Powertrain | Battery | Voltage/Capacity | V/Ah | （12/90)x2 |
| Engine | Model | CY6102BG6 | ||
| Rated power | kw/r.p.m | 81/2500 | ||
| Rated torque | Nm/r.p.m | 353/1700 | ||
| Cylinder amount | 6 | |||
| Bore×Stroke | mm | 102×118 | ||
| Displacement | 5.785 | |||
| Fuel tank | L | 140 | ||
| Transmission | ||||
| Working pressure | MPa | 20 | ||
Safe & Reliable
• Engine is with large torque and capacity, which is powerful and can meet different operation demands;
• Lifting system is equipped with up and down buffer cylinders, which reduce shock and vibration efficiently;
• Hydraulic system is equipped with the throttling valve, which makes operation safe and reliable;
• Reinforced mast with wide view design improves efficiency and safety meanwhile enhances anti-force capacity.
• The forklifts are nice in appearance with streamline design. They work stably with high efficiency and good grade ability and can be operated in bad working conditions.
Comfort & Efficient
• Integrated overhead guard is adopted. The canopy is one time stamping part with 5 pieces transparent plastic cover, which receives sufficient light and keeps rain out;
• Big power engine in V type installation can reduce the vibration;
• Scientific ergonomic design makes operation more portable and comfortable. Seat and backrest are adjustable. Steering wheel tilt angle is also adjustable, which leaves more legroom. The portable gearshift is quick to shift and easy to operate.
• Engine is with large torque and capacity, which is powerful and can meet different operation demands;
• Lifting system is equipped with up and down buffer cylinders, which reduce shock and vibration efficiently;
• Hydraulic system is equipped with the throttling valve, which makes operation safe and reliable;
• Reinforced mast with wide view design improves efficiency and safety meanwhile enhances anti-force capacity.
• The forklifts are nice in appearance with streamline design. They work stably with high efficiency and good grade ability and can be operated in bad working conditions.
Comfort & Efficient
• Integrated overhead guard is adopted. The canopy is one time stamping part with 5 pieces transparent plastic cover, which receives sufficient light and keeps rain out;
• Big power engine in V type installation can reduce the vibration;
• Scientific ergonomic design makes operation more portable and comfortable. Seat and backrest are adjustable. Steering wheel tilt angle is also adjustable, which leaves more legroom. The portable gearshift is quick to shift and easy to operate.
