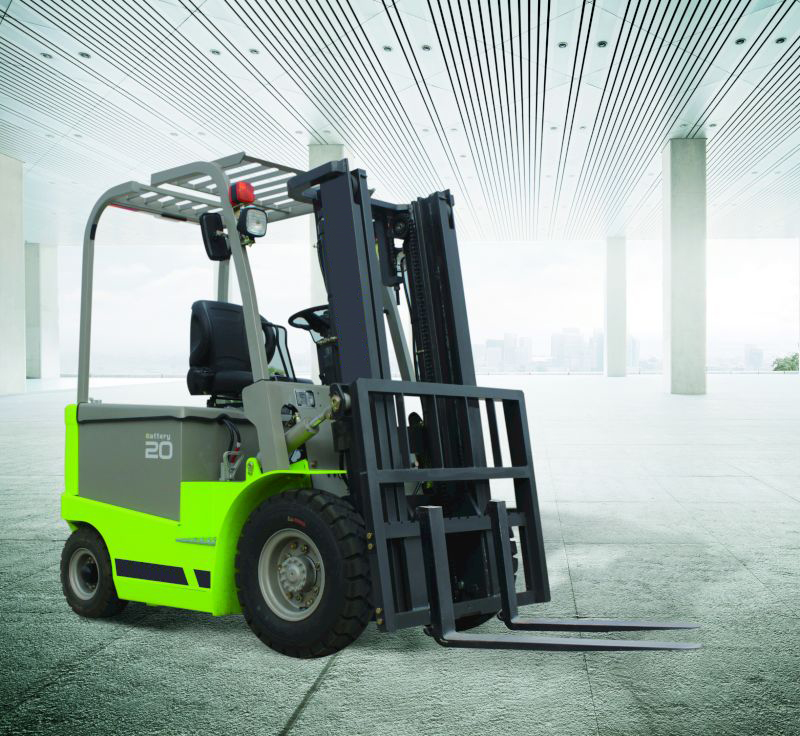

GTFB20-Z Electric Forklift
GTFB20-Z Electric Forklift

Electric Forklift

GTFB20-Z Electric Forklift

Specifications Unit FB20
Characteristics Power   battery
Capacity kg 2000
Center of load mm 500
Lifting height mm 3000
Free lifting height mm 145
Forks L×W×H mm 1070×122×40
Mast tilt angle Forward/Backward 6月12日
Min.turning radius mm 2090
Min. right angle stacking width mm 3760
Min. right angle Aisle width mm 2040
Min.ground clearance mm 110
Overhead guard height mm 2150
Height from seat to overhead guard mm 1005
Front overhang mm 470
Perf Max.traveling speed(loaded) km/h 13
Max.lifting speed(loaded) mm/s 280 300
Gradeability % 15
Dimensions Overall length (without fork) mm 2310
Overall width mm 1150
Mast extended height(with bracket) mm 4030
Mast lowered height  mm 1990
Chassis Tire Front   7.00-12-12PR
Front   7.00-12-12PR
Rear   18×7-8-14PR
Wheelbase mm 1450
Tread width Front/Rear mm 960/950
Curb weight None-load kg 3950
Powertrain Battery Voltage/Capacity V/Ah 48/630
Motor Traveling KW 11
Lifting KW 10 14
Controller CURTIS
Control type 50%AC 100%AC
Working pressure Mpa 17.5

Safe & Durable
• Electronic AC traction motor and pump control with self-protection features that do not require any maintenance.
• Motors are equipped with temperature and speed sensors to prevent accidental damage.
• Closed-loop speed control with standard power selection switch (crawl) that ensures safety and power saving.
• Automatic ramp parking with empty or full load.
Energy & Efficient
• Interactive CURTIS LCD meter that can customize driving and lifting performance, and monitor the operating conditionsof the motors to provide work time and fault code.
• Closed-loop lifting speed control that ensures accurate and comfortable lifting control.
• CAN electrical bus control offers fast and accurate signal transmission.
• Sufficient climbing power that can increase overall speed by 20%.
Smooth & Quiet
• Excellent handling performance that ensures stable and fast acceleration during operation.
• Load sensing and single pump bypass technologies that reduce steering noise significantly.
• Low-noise toothed pump that reduces operating noise significantly.
• 30% energy recovery while braking to provide more power for the battery.
