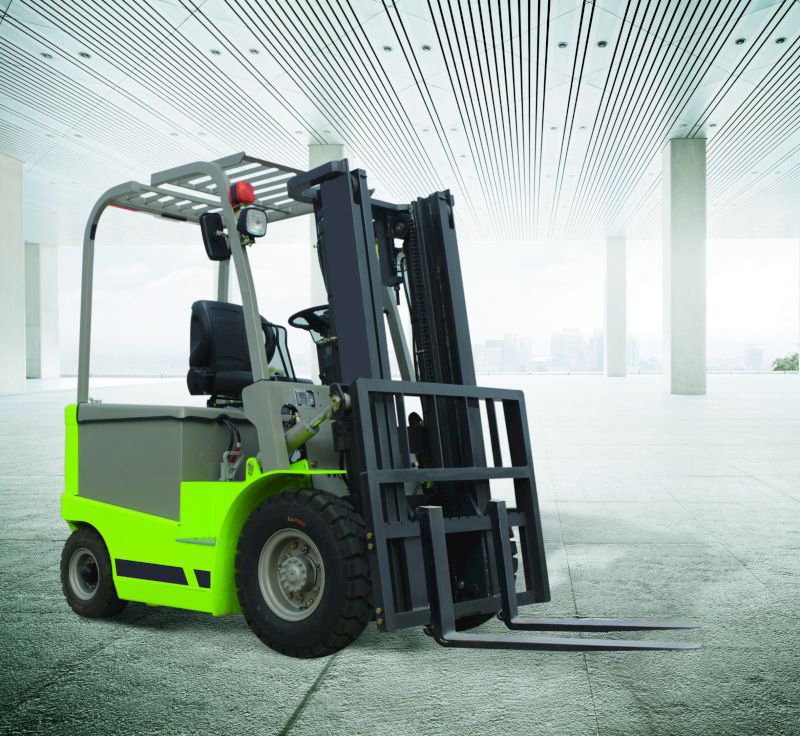

GTFB30/35-Z Electric Forklift
Electric Forklift
GTFB30/35-Z Electric Forklift
| Specifications | Unit | FB35 | ||
| Characteristics | Power | battery | ||
| Capacity | kg | 3500 | ||
| Center of load | mm | 500 | ||
| Lifting height | mm | 3000 | ||
| Free lifting height | mm | 150 | ||
| Forks L×W×H | mm | 1070x125x50 | ||
| Mast tilt angle Forward/Backward | 。 | 6月12日 | ||
| Min.turning radius | mm | 2385 | ||
| Min. right angle stacking width | mm | 4065 | ||
| Min. right angle Aisle width | mm | 2290 | ||
| Min.ground clearance | mm | 120 | ||
| Overhead guard height | mm | 2300 | ||
| Height from seat to overhead guard | mm | 1100 | ||
| Front overhang | mm | 485 | ||
| Perf | Max.traveling speed(loaded) | km/h | 13 | |
| Max.lifting speed（loaded） | mm/s | 280 | ||
| Gradeability | % | 12 | ||
| Dimensions | Overall length （without fork） | mm | 2630 | |
| Overall width | mm | 1225 | ||
| Mast extended height(with bracket) | mm | 4264 | ||
| Mast lowered height | mm | 2095 | ||
| Chassis | Tire | Front | 28x9-15 | |
| Front | 28x9-15 | |||
| Rear | 18x7-8 | |||
| Wheelbase | mm | 1720 | ||
| Tread width | Front/Rear | mm | 1000/980 | |
| Curb weight | None-load | kg | 5300 | |
| Powertrain | Battery | Voltage/Capacity | V/Ah | 80/560 |
| Motor | Traveling | KW | 12 | |
| Lifting | KW | 14 | ||
| Controller | CURTIS | |||
| Control type | 100%AC | |||
| Working pressure | Mpa | 17.5 | ||
Safe & Durable
• Electronic AC traction motor and pump control with self-protection features that do not require any maintenance.
• Motors are equipped with temperature and speed sensors to prevent accidental damage.
• Closed-loop speed control with standard power selection switch (crawl) that ensures safety and power saving.
• Automatic ramp parking with empty or full load.
Energy & Efficient
• Interactive CURTIS LCD meter that can customize driving and lifting performance, and monitor the operating conditionsof the motors to provide work time and fault code.
• Closed-loop lifting speed control that ensures accurate and comfortable lifting control.
• CAN electrical bus control offers fast and accurate signal transmission.
• Sufficient climbing power that can increase overall speed by 20%.
Smooth & Quiet
• Excellent handling performance that ensures stable and fast acceleration during operation.
• Load sensing and single pump bypass technologies that reduce steering noise significantly.
• Low-noise toothed pump that reduces operating noise significantly.
• 30% energy recovery while braking to provide more power for the battery.
• Electronic AC traction motor and pump control with self-protection features that do not require any maintenance.
• Motors are equipped with temperature and speed sensors to prevent accidental damage.
• Closed-loop speed control with standard power selection switch (crawl) that ensures safety and power saving.
• Automatic ramp parking with empty or full load.
Energy & Efficient
• Interactive CURTIS LCD meter that can customize driving and lifting performance, and monitor the operating conditionsof the motors to provide work time and fault code.
• Closed-loop lifting speed control that ensures accurate and comfortable lifting control.
• CAN electrical bus control offers fast and accurate signal transmission.
• Sufficient climbing power that can increase overall speed by 20%.
Smooth & Quiet
• Excellent handling performance that ensures stable and fast acceleration during operation.
• Load sensing and single pump bypass technologies that reduce steering noise significantly.
• Low-noise toothed pump that reduces operating noise significantly.
• 30% energy recovery while braking to provide more power for the battery.
