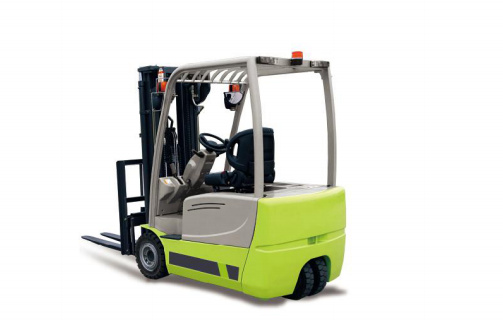

GTFE16H Electric Forklift
FE16H Electric Forklift
GTFE16H Electric Forklift
| Model | FE16 | |||
| Features | Power type | Battery | ||
| Rated Load | kg | 1600 | ||
| Load Center | mm | 500 | ||
| Lifting Height | mm | 3300（Customized） | ||
| Free Lifting Height | mm | 85 | ||
| Fork Size | L*W*T | mm | 920×100×35（Customized） | |
| Mast Tilt Radius | Front/Rear | 。 | 6/6.5 | |
| Minimum Turning Radius | mm | 1580 | ||
| Minimum Stacking Right Angle Channel Width | mm | 3300 | ||
| Minimum Right Angle Channel Width | mm | 1780 | ||
| Minimum Ground Clearance | mm | 95 | ||
| Overhead Guard Height | mm | 1990 | ||
| Height From Seat To Overhead Guard | mm | 1000 | ||
| Front Overhang | mm | 375 | ||
| Performance | Max. Travelling Speed | Full load | km/h | 13 |
| Max. Lifting Speed | Full load | mm/s | 320 | |
| Max. Climbing Ability | % | 15 | ||
| Dimension | Overall Length | Without Fork | mm | 1954 |
| Overall Width | mm | 1100 | ||
| Max. Fork Lifting height (With Load Backrest) | mm | 4174 | ||
| Mast Height | mm | 2165 | ||
| Power | Tyre | Front | mm | 18X7-8 |
| Rear | mm | 15X4.5-8 | ||
| Wheel Base | mm | 1390 | ||
| Wheel Tread | Front/Rear | mm | 940/180 | |
| Curb Weight | Without load | kg | 3150 | |
| Battery | Voltage/Capacity | V/Ah | 48/500 | |
| Motor | Driving | Kw | 4.5X2 | |
| Lifting | Kw | 10 | ||
| Controller | CURTIS | |||
| Control mode | AC | |||
| Working Pressure | Mpa | 14.5 |
||
Safe & Durable
• Electronic AC traction motor and pump control with self-protection features that do not require any maintenance.
• Motors are equipped with temperature and speed sensors to prevent accidental damage.
• Closed-loop speed control with standard power selection switch (crawl) that ensures safety and power saving.
• Automatic ramp parking with empty or full load.
Energy & Efficient
• Interactive CURTIS LCD meter that can customize driving and lifting performance, and monitor the operating conditionsof the motors to provide work time and fault code.
• Closed-loop lifting speed control that ensures accurate and comfortable lifting control.
• CAN electrical bus control offers fast and accurate signal transmission.
• Sufficient climbing power that can increase overall speed by 20%.
Smooth & Quiet
• Excellent handling performance that ensures stable and fast acceleration during operation.
• Load sensing and single pump bypass technologies that reduce steering noise significantly.
• Low-noise toothed pump that reduces operating noise significantly.
• 30% energy recovery while braking to provide more power for the battery.
• Electronic AC traction motor and pump control with self-protection features that do not require any maintenance.
• Motors are equipped with temperature and speed sensors to prevent accidental damage.
• Closed-loop speed control with standard power selection switch (crawl) that ensures safety and power saving.
• Automatic ramp parking with empty or full load.
Energy & Efficient
• Interactive CURTIS LCD meter that can customize driving and lifting performance, and monitor the operating conditionsof the motors to provide work time and fault code.
• Closed-loop lifting speed control that ensures accurate and comfortable lifting control.
• CAN electrical bus control offers fast and accurate signal transmission.
• Sufficient climbing power that can increase overall speed by 20%.
Smooth & Quiet
• Excellent handling performance that ensures stable and fast acceleration during operation.
• Load sensing and single pump bypass technologies that reduce steering noise significantly.
• Low-noise toothed pump that reduces operating noise significantly.
• 30% energy recovery while braking to provide more power for the battery.
