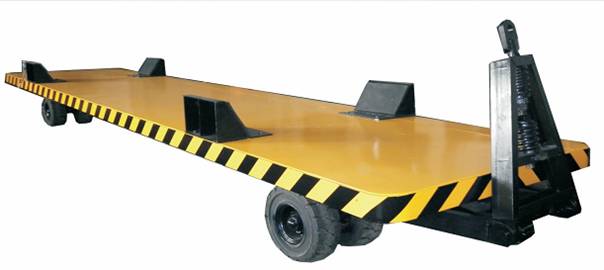

GPPC 15
GPPC 15
GPPC 15
| Overall Dimention | 12000×2000×800㎜ |
| Platform Dimention | 11000×2000×800㎜ |
| Max. Payload | 15000㎏ |
| Max driving speed |
General
Model as GPPC15, suitable for transportation of general cargo and/or fabrications and/or tools, etc., designed and made for transportation purpose, with 2 vehicles can be connected as one to be a 22m trailor. Mainly tracted by tractors.
Frame Descriptions
Overall steel frame structure, all-round slewing, steel axle system, 10 sets of solid tyres 21*8-9.
Payload platform size 10000mm*2000mm
Main structure made by H-section steel 25#, strengthen beam by Channel steel steel 25#, crossgirder by Channel steel steel 14# /10#, and boundary beam by Channel steel steel 14#, platform by corrugated steel plate 10# 5mm thicknes; steel beams are all built as frame construction to carry the rated payload.
Driving and Steering
Driving and Steering
Driving device is steel axle system, single wheel with short shaft, good to adapt to the floor.
Steering device is with all-round front steel, and block bearing, safe and reliable.
The 21*8-9 solid tyres can ensure the payload and suitable for working situation and lifespan requirement from the ports, industry sites, etc.
Others
Others
23 Jacks on each long side, can be dismantled,to prevent cargo falls.
Colored in yellow.
Desing and making process including the surface treatment and painting follow the Chiense National Standard.
