GTBZ 40 parts
Platform height 129 ft (39.3 m)
Working height 135 ft (41.3 m)
Payload 750 lbs (340 kg) - Unlimited
Payload 1058 lbs (480 kg) - Limited
Outreach 80 ft (24.38 m)
GTBZ 40 parts
|
Models
|
GTBZ40
|
|
|
Dimensions
|
||
|
Platform height max.
|
129 ft (39.3 m)
|
|
|
Working height max.
|
135 ft (41.3 m)
|
|
|
Horizontal reach max.
|
80 ft (24.38 m)
|
|
 Length - stowed |
45 ft 1 in (13.75 m)
|
|
 Width - stowed |
8 ft 2 in (2.49 m)
|
|
 Height - stowed |
10 ft 1 in (3.08 m)
|
|
 Wheelbase |
12 ft 5 in (3.81 m)
|
|
|
Ground clearance
|
2 ft 1 in (0.65 m)
|
|
|
Platform size (L*W*H)
|
6 ft*2 ft 5 in*3 ft 6 in (1.83 m*0.76 m*1.1 m)
|
|
|
Productivity
|
||
|
Max. platform occupancy
|
2
|
|
|
Lift capacity
|
750 lbs (340 kg) - Unlimited
1058 lbs (480 kg) - Limited |
|
|
Turntable rotation
|
360° continuous
|
|
|
Platform rotation
|
160°
|
|
|
Drive speed - stowed
|
0～2.7 mph (0~4.4 km/h)
|
|
|
Drive speed - raised
|
0～0.7 mph (0~1.1 km/h)
|
|
|
Gradeability
|
40%
|
|
|
Turning radius - inside
|
14 ft 3 in (4.37 m)
|
|
|
Turning radius - outside
|
22 ft 3 in (6.81 m)
|
|
|
Turntable tailswing
|
5 ft 5 in (1.68 m)
|
|
|
Max. allowable slope
|
3°
|
|
|
Max. noise on normal use
|
82 dB(A)
|
|
|
Drive & steer model
|
4 WD * 4 WS
|
|
|
Tire size / type
|
385/65 - 24 / 10 solid
|
|
|
Power
|
||
|
Power source
|
Original Cummins/Perkins Engine
|
|
|
Fuel tank capacity
|
52.83 gal (200 L)
|
|
|
Control voltage
|
12 VDC
|
|
|
Power
|
60 KW
|
|
|
Weight
|
||
|
Overall weight
|
47532 lbs (21560 kg)
|
|
|
Standards Compliance
|
CE/ ISO/ ADR/ ARAMCO
|
|

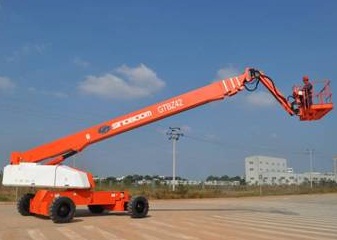

- GTBZ40 Telescopic Boom Lift applies to shipbuilding, large steel structure building, construction, civil engineering and advertising industries, etc. This aerial work platform is safe and reliable, designed under concept of durability, solidity and excellent performance to satisfy the need of extremely challenging operating conditions. The maximum grade ability 40% enable the equipment to park and restart on slope without sliding down. Imported USA engine provides strong power to the equipment; Long life foam tire and originally imported PLC for military purpose are adopted, the program can be set and developed as per customized requirements.
Wide operating range, large load capacity and strong driving force are main characters of Telescopic Boom Lift,which employs innovative technology in designing, so that the product boasts high-level safety, reliability and comfortableness.
- 1. Wide operating range: 360° full direction operation at the height from 0~143 ft (43.6 m), with a horizontal reach max. by 80 ft (24.38 m).
2. Large load capacity: The lift capacity is 1058 lbs (480 kg); the platform can hold 3 operators.
3. Powerful driving force: The engine is of famous international brand, large in power, strong gradeability.
4. Advanced technology: Self-adaption floating device, fault self-diagnosis technology, self-levelling system, and anti-collision transducer device.
5. High reliability: The engine, key hydraulic components and electric components are all of international brand, designed in conformity with EN280, AS1418.10 and GB25849.
6. Good safety: Overload limit and rollover protection system.
7. Easy maintenance: Swing-out engine, easy to maintain.
