GTBZ27 parts
Platform height 90 ft 6 in (27.6 m)
Working height 97 ft 1in (29.6 m)
Outreach 70 ft 2 in (21.4 m)
Payload 551 lbs (250 kg)
GTBZ27 parts
|
Model
|
GTBZ27
|
|
|
Dimensions
|
||
|
Platform height
|
90 ft 6 in (27.6 m)
|
|
|
Working height
|
97 ft 1in (29.6 m)
|
|
|
Horizontal outreach
|
70 ft 2 in (21.4 m)
|
|
|
Length (stowed)
|
40 ft 7 in (12.4 m)
|
|
|
Width (stowed)
|
8 ft 2 in (2.49 m)
|
|
|
Height (stowed)
|
9 ft 2 in (2.8 m)
|
|
|
Ground clearance
|
1 ft 4 in (0.43 m)
|
|
|
Wheel base
|
9 ft 8 in (3 m)
|
|
|
Size of platform (L*W*H)
|
4 ft 8 in *2 ft 8 in * 4 ft 1 in (1.45 m *0.85 m *1.24 m)
|
|
|
Performance Data
|
||
|
Platform Capacity
|
2
|
|
|
Load capacity of platform
|
551 lbs (250 kg)
|
|
|
Turntable rotation
|
360°
|
|
|
Platform rotation
|
160°
|
|
|
Driving speed (stowed)
|
0～3.2 mph (5.2 km/h)
|
|
|
Driving speed (raised)
|
0～0.7 mph (1.1 km/h)
|
|
|
Gradeability
|
30% (2WD) 45% (4WD)
|
|
|
Outside turning radius
|
19 ft 2 in (5.84 m)
|
|
|
Inside turning radius
|
8 ft (2.44 m)
|
|
|
Tail swing
|
3 ft 9 in (1.18 m)
|
|
|
Allowable slope
|
3°
|
|
|
Drive * steering
|
2 WD * 2 WS /4 WD * 2 WS
|
|
|
Tire size/type
|
12.00 - 20 / Solid
|
|
|
Engine
|
||
|
Power source
|
diesel engine
|
|
|
Drive Type
|
Hydraulic pressure
|
|
|
Volume of hydraulic oil tank
|
160 L
|
|
|
Power
|
60 KW
|
|
|
Weight
|
||
|
Overall weight
|
34679 lbs (15730 kg) -（2WD）
34833 lbs (15800 kg) -（4WD） |
|
|
Standards compliant
|
CE、ISO、GOST
|
|

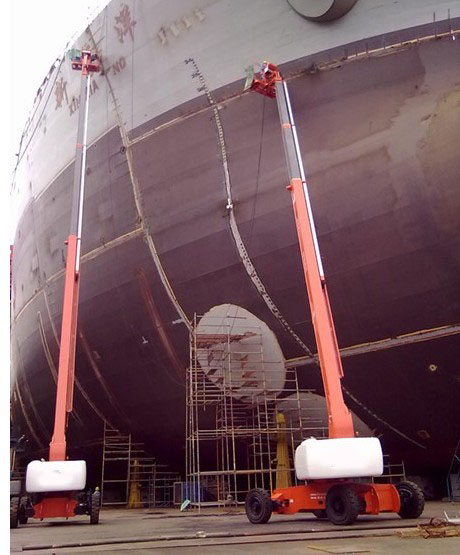

GTBZ27 Telescopic Boom Lift applies to shipbuilding, large steel structure building, construction, civil engineering and advertising industries, etc. This aerial work platform is safe and reliable. Designed with the concept of durability, solidity, and excellent performance, it can meet the need of extremely challenging operating conditions. The maximal grade ability of 45% allows parking and restarting on such slope without down sliding. Imported from USA, the engine is in a position to supply large power; the solid tires enjoy a long life. PLC is imported originally for military purpose. Program can be set and developed as required by customers.
1. Wide operating range: 360° full direction operation at the height from 0~97 ft 1in (29.6 m), with a horizontal outreach by 70 ft 2 in (21.4 m).
2. Large load capacity: The maximum load capacity is 551 lbs (250 kg); the platform can hold 2 operators.
3. Powerful driving force: The engine is of famous international brand, large in power, strong grade ability.
4. Advanced technology: Self-adaption floating device, fault self-diagnosis technology, auto-leveling system, and anti-collision transducer device.
5. High reliability: The engine, key hydraulic components and electric components are all of international brand, designed in conformity with EN280, AS1418.10 and GB25849.
6. Good safety: Overload limit and rollover protection system.
7. Easy maintenance: Swing-out engine, easy to maintain.
