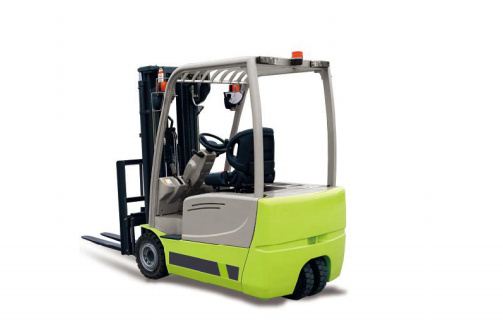

GTFE18H Electric Forklift
GTFE18H Electric Forklift

GTFE18H Electric Forklift

GTFE18H Electric Forklift



Model FE18
Features Power type   Battery
Rated Load kg 1800
Load Center mm 500
Lifting Height mm 3300(Customized)
Free Lifting Height mm 85
Fork Size L*W*T mm 920×100×35(Customized)
Mast Tilt Radius Front/Rear 6/6.5
Minimum Turning Radius mm 1580
Minimum Stacking Right Angle Channel Width mm 3300
Minimum Right Angle Channel Width mm 1780
Minimum Ground Clearance mm 95
Overhead Guard Height mm 1990
Height From Seat To Overhead Guard mm 1000
Front Overhang mm 375
Performance Max. Travelling Speed Full load km/h 13
Max. Lifting Speed Full load mm/s 300
Max. Climbing Ability % 15
Dimension Overall Length Without Fork mm 1954
Overall Width mm 1100
Max. Fork Lifting height (With Load Backrest) mm 4174
Mast Height mm 2165
Power Tyre Front mm 18X7-8
Rear mm 15X4.5-8
Wheel Base   mm 1390
Wheel Tread Front/Rear mm 940/180
Curb Weight Without load kg 3300
Battery Voltage/Capacity V/Ah 48/500
Motor Driving Kw 4.5X2
Lifting Kw 10
Controller   CURTIS
Control mode   AC
Working Pressure Mpa 14.5
