GTJZ1012 parts
Platform height 33 ft (10 m)
Working height 39 ft (12 m)
Payload 705 lbs (320 kg)
Platform extension 3 ft (0.9 m)
GTJZ1012 parts
|
Models
|
GTJZ1012
|
  |
|
Dimensions
|
||
 Platform height max. |
33 ft (10 m)
|
|
|
Working height max.
|
39 ft (12 m)
|
|
 Platform extended |
3 ft (0.9 m)
|
|
 Length - stower |
7 ft 8 in (2.39 m)
|
|
|
Width - stower
|
3 ft 8 in (1.15 m)
|
|
 Height - folding guardrails |
8 ft 1 in (2.48 m)
|
|
|
Height - rails folded
|
6 ft 1 in (1.86 m)
|
|
|
Height - fixed rails
|
8 ft 1 in (2.48 m)
|
|
 Wheelbase |
6 ft (1.85 m)
|
|
|
Ground clearance
|
3 in (0.1 m)
|
|
|
Platform size (L*W*H)
|
7 ft 4 in*3 ft 8 in*3 ft 6 in (2.25 m*1.15 m*1.1 m)
|
|
|
Productivity
|
||
|
Max. platform occupancy
|
2 (indoor) 1 (outdoor)
|
|
|
Lift capacity
|
705 lbs (320 kg)
|
|
|
Lift capacity - extension deck
|
265 lbs (120 kg)
|
|
|
Drive speed - stowed
|
0～2.0 mph (0~3.2 km/h)
|
|
|
Drive speed - raised
|
0～0.5 mph (0~0.8 km/h)
|
|
|
Gradeability
|
25%
|
|
|
Turning radius - inside
|
0 ft (0 m)
|
|
|
Turning radius - outside
|
7 ft 7 in (2.35 m)
|
|
|
Raise / Lower speed
|
55 /42 s
|
|
|
Controls
|
Proportional
|
|
|
Drives
|
Dual front wheel
|
|
|
Brakes
|
Dual rear wheel
|
|
|
Tire size (solid non-marking)
|
15 in * 5 in (380 mm * 125 mm)
|
|
|
Power
|
||
|
Power source
|
24V DC (4*6V, 225Ah batteries)
|
|
|
Hydraulic system capacity
|
4.76 gal (18 L)
|
|
|
Power
|
3 KW
|
|
|
Weight
|
||
|
Indoor
|
5247 lbs (2380 kg)
|
|
|
Indoor & outdoor general
|
5666 lbs (2570 kg)
|
|
|
Standards Compliance
|
CE/ ISO/ ADR/ ARAMCO
|
|

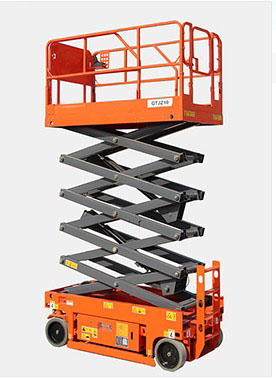

- GTJZ1012 Self-propelled hydraulic scissor lifts are mostly applied to flat indoor or outdoor. The body is pleasing to eye and flexible to operate. The main engine can travel and turn automatically. It features imported hydraulic components, explosion-proof pipe unit and emergency descending switch; hydraulically driven ascending, descending and travelling function; low in noises and free of air pollution; durable, chip-free, skid-proof and traceless tires without scratching the ground; optimized product control mode and procedure with the premise of safety, bringing much more humanized operation.
1. Small turning radius: The outside turning radius of the tires is 7 ft 7 in ( 2.35 m) and the inside turning radius is 0 ft (0 m).
2. Large load capacity: The maximal load capacity reaches 705 lbs (320 kg) and the load capacity of the extended platform is up to 265 lbs (120 kg).
3. Sufficient electric power: Trojan batteries imported from USA are used, single cell capacity is up to 260Ah; 5-7h duration in normal operation.
4. Advanced technology: Adpot DeltaTech control system and fault self-diagnosis technique, with anti-collision transducer option.
5. High reliability: Imported key components and the waterproof capacity of major electric components is up to IP65.
6. Good safety: Equipped with horizontal switch and weighing sensor, which ensures the safety of equipment and operators.
7. Easy maintenance: Dual revolving doors, easy to maintain.
8. Energy-saving and environment-friendly: Low noise, no pollution, up to energy-saving and environmental protection standard.
