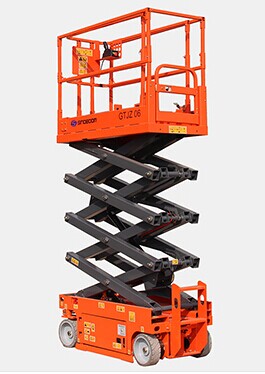

GTJZ0608S self-propelled scissor lift

Current position：Home>>Product

Product

GTJZ0608S parts

Platform height 19 ft (5.8 m)
Working height 25 ft (7.8 m)
Platform extension 3 ft (0.9 m)
Payload 507 lbs (230 kg)

GTJZ0608S parts

Models	GTJZ0608S
Dimensions
Platform height max.	19 ft (5.8 m)
Working height max.	25 ft (7.8 m)
Platform extended	3 ft (0.9 m)
Lengt - stowed	5 ft 8 in (1.775 m)
Width - stowed	2 ft 5 in (0.76 m)
Height- stowed	6 ft 8 in (2.06 m)
Wheelbase	4 ft 3 in (1.315 m)
Ground clearance	3 in (0.07 m)
Platform size(LWH)	5 ft 4 in2 ft 5 in3 ft 6 in (1.64 m0.76 m1.1 m)
Productivity
Max. platform occupancy	2
Lift capacity	507 lbs (230 kg)
Lift capacity - extension deck	265 lbs (120 kg)
Driving speed - stowed	0～2.5 mph (0~4 km/h)
Driving speed - raised	0～0.5 mph (0~0.8 km/h)
Gradeability	30%
Turning radius - inside	0 ft (0 m)
Turning radius - outside	4 ft 9 in (1.48 m)
Raise / Lower speed	18/ 25 s
Controls	Proportional
Drives	Dual front wheel
Brakes	Dual rear wheel
Tire size (solid non-marking)	12 in * 5 in (305 mm * 115 mm)
Power
Power source	24V DC (4*6V, 225Ah batteries)
Hydraulic system capacity	4.76 gal (18 L)
Power	3 KW
Weight
Indoor	2928 lbs (1328 kg)
Standards Compliance	CE/ ISO/ ADR/ ARAMCO

GTJZ0608S self-propelled scissor lift is the ideal small tight lift for maneuvering in flat indoor or outdoor sites. The body is pleasing to eye; the product is compact in structure and flexible to operate. The main engine is designed as dual-driven dual steering with self-travelling and turning functions. It features imported hydraulic components, explosion-proof pipe unit and emergency descending unit; motor/hydraulically driven travelling function; low in noises and free of air pollution; durable, chip-free, skid-proof and traceless tires without scratching the ground; optimized product control mode and procedure with the premise of safety, bringing much more humanized operation.

1. Small turning radius: The outside turning radius of the tires is 4 ft 9 in (1.48 m) and the inside turning radius is 0 ft (0 m).
2. Large load capacity: The maximal load capacity reaches 265 lbs (230 kg) and the load capacity of the extended platform is up to 265 lbs (120 kg).
3. Sufficient electric power: Trojan batteries imported from USA are used with four groups in series, with capacity up to 225Ah; 8h duration in normal operation.
4. Advanced technology: Adpot DeltaTech control system and fault self-diagnosis technique, with anti-collision transducer option.
5. High reliability: Imported key components and the waterproof capacity of major electric components is up to IP65.
6. Good safety: Equipped with horizontal switch and weighing sensor, which ensures the safety of equipment and operators.
7. Easy maintenance: Dual revolving doors, easy to maintain.
8. Energy-saving and environment-friendly: Low noise, no pollution, up to energy-saving and environmental protection standard.
