GTJZ0612 parts
GTJZ0612 parts

Platform height 20.67 ft (6.3 m)
Working height 27 ft (8.3 m)
Platform extension 3 ft (0.9 m)
Payload 1212 lbs (550 kg)

GTJZ0612 parts

Models
GTJZ0612




Dimensions
 Platform height max.
20.67 ft (6.3 m)
Working height max.
27 ft (8.3 m)
 Platform extended
3 ft (0.9 m)
 Length -  stowed
7.8 ft (2.39 m)
Width - stowed
3.77 ft (1.15 m)
 Height - stowed
7.3 ft (2.22 m)
 Wheelbase
6.07 ft (1.85 m)
Ground Clearance
0.33 ft in (0.1 m)
Platform size (L*W*H)
7.4 ft*3.77 ft*3.6 ft
(2.25
 m*1.15 m*1.1 m)
Productivity
Max. platform occupancy
2(indoor)  2(outdoor)
Lift capacity
1212 lbs (550 kg)
Driving speed - stowed
 0~3.2 km/h
Driving speed - raised
0~0.8 km/h
Gradeability
25%
Turning radius - inside
0 ft (0 m)
Turning radius - outside
7.7 ft (2.35 m)
Raise / Lower speed
25s~30s / 30s~35s
Controls
Proportional
Drive&steer model
2WD, front-wheel
Brake
2 rear wheel
Tire Size/type
380*125mm/solid
Power
Battey
6V*4/225Ah
Hydraulic system tank vol.
18 L
Power unit
24VDC  ,3 KW
Weight
Overall weight
4564 lbs (2070 kg)
StandardsCompliance
CE/ISO/ADR/ARAMCO

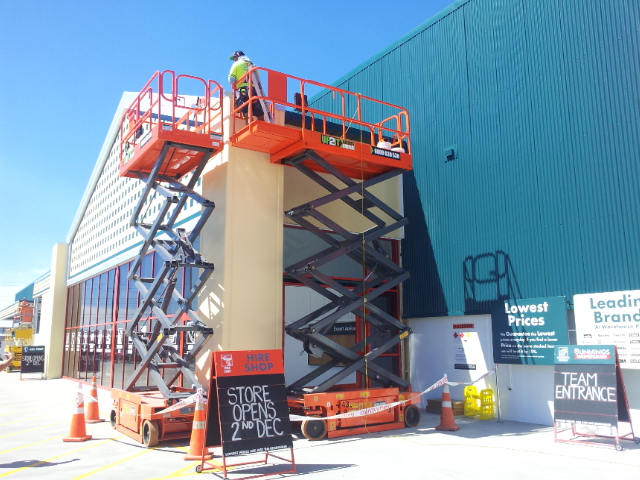

    GTJZ0612 Self-propelled hydraulic scissor lifts are mostly applied to flat indoor or outdoor. The body is pleasing to eye and flexible to operate. The main engine can travel and turn automatically. It features imported hydraulic components, explosion-proof pipe unit and emergency descending switch; hydraulically driven ascending, descending and travelling function; low in noises and free of air pollution; durable, chip-free, skid-proof and traceless tires without scratching the ground; optimized product control mode and procedure with the premise of safety, bringing much more humanized operation.

1. Small turning radius: The outside turning radius of the tires is 7.7 ft (2.35 m) and the inside turning radius is 0.88 ft (0 m).
2. Large load capacity: The maximal load capacity reaches 1212 lbs (550 kg).
3. Sufficient electric power: Trojan batteries imported from USA are used with four groups in series, with capacity up to 225Ah; 8h duration in normal operation.
4. Advanced technology: Adpot DeltaTech control system and fault self-diagnosis technique, with anti-collision transducer option.
5. High reliability: Imported key components and the waterproof capacity of major electric components is up to IP65.
6. Good safety: Equipped with horizontal switch and weighing sensor, which ensures the safety of equipment and operators.
7. Easy maintenance: Dual revolving doors, easy to maintain.
8. Energy-saving and environment-friendly: Low noise, no pollution, up to energy-saving and environmental protection standard.
