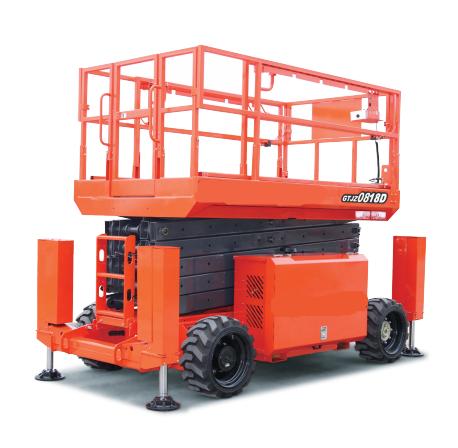

GTJZ0818D
GTJZ0818D

Platform height 25.9 ft (7.9 m)
Working height 32 ft (9.9 m)
Platform extension 4.92 ft (1.5 m)
Payload 1499 lbs (680 kg)

GTJZ0818D

Models
GTJZ0818D




Dimensions
 Platform height max.
25.9 ft (7.9 m)
Working height max.
32 ft (9.9 m)
 Platform extended
4.92 ft (1.5 m)
Overall Length(stowed,with outrigger/without)
12ft/10.8ft(3.77m/3.29m)
Overall width(stowed)
5.77 ft (1.76 m)
Overall height
(stowed,guardrail folded/unfolded)
6 ft (1.9 m)/8.2ft(2.50m)
 Wheelbase
7.48 ft (2.28 m)
Ground Clearance
0.72 ft (0.22 m)
Platform size (L*W*H)
9 ft*5.24ft*3.6ft
(2.8
 m*1.6 m*1.1 m)
Productivity
Max. platform occupancy
4(indoor),  4(outdoor)
Lift capacity
1499 lbs (680 kg)
Lift capacity - extension outreach
308 lbs (140 kg)
Driving speed - stowed
 0~5.6 km/h
Driving speed - raised
0~0.48 km/h
Gradeability
40%
Turning radius - inside
6.9 ft (2.11 m)
Turning radius - outside
15 ft (4.6 m)
Rising / Falling speed (without loading)
29s~39s / 26s~36s
Controls
Proportional
Drive&steer model
4WD*2WS
Hydraulic system pressure
24Mpa
Tire Size/type
26*12-16.5/solid foam
Power
Control voltage
12VDC
Hydraulic system tank vol.
85 L
Fuel tank vol.
48 L
Weight
Overall weight
(with outrigger/without)
8631 lbs (3915 kg) /
7617 lbs (3455 kg)
StandardsCompliance
CE/ISO/ADR/ARAMCO

GTJZ0818D Diesel Self-propell Scissor Lift are mainly used in flat indoor or outdoor. The body is pleasing to eye; the product is compact in structure and flexible to operate. The main engine is designed as dual-driven dual steering with self-travelling and turning functions. It features imported hydraulic components, explosion-proof pipe unit and emergency descending unit; hydraulically driven travelling function; low in noises and free of air pollution; durable, chip-free, skid-proof and traceless tires without scratching the ground; optimized product control mode and procedure with the premise of safety, bringing much more humanized operation.

1. Small turning radius: The outside turning radius of the tires is 15 ft (4.6 m) and the inside turning radius is 6.9 ft (2.11 m).
2. Large load capacity: The maximal load capacity reaches
1499 lbs (680 kg) and the load capacity of the extended platform is up to 308 lbs (140 kg).
3. Advanced technology: Adpot DeltaTech control system and fault self-diagnosis technique, with anti-collision transducer option.
4. High reliability: Imported key components and the waterproof capacity of major electric components is up to IP65.
5. Good safety: Equipped with horizontal switch and weighing sensor, which ensures the safety of equipment and operators.
6. Easy maintenance: Dual revolving doors, easy to maintain.
7. Energy-saving and environment-friendly: Low noise, no pollution, up to energy-saving and environmental protection standard.
