GTJZ1012E parts
GTJZ1012E parts

Platform height 32 ft (9.7 m)
Working height 38 ft (11.7 m)
Platform extension 3 ft (0.9 m)
Payload 705 lbs (320 kg)

GTJZ1012E parts



Models
GTJZ1012E

small scissor lift

GTJZ1012E scissor lifts
Dimensions
 Platform height max.
32 ft (9.7 m)
Working height max.
38 ft (11.7 m)
 Platform extended
3 ft (0.9 m)
 Length - stower
7 ft 9 in (2.41 m)
Width - stower
3 ft 8 in (1.15 m)
 Height - folding guardrails
8 ft 5 in (2.58 m)
Height - rails folded
6 ft 3 in (1.92 m)
 Wheelbase
6 ft 1 in (1.87 m)
Ground clearance
1 in (0.04 m)
Platform size (L*W*H)
7 ft 5 in*3 ft 8 in*3 ft 6 in (2.3 m*1.15 m*1.1 m)
Productivity
Max. platform occupancy
2 (indoor) 1 (outdoor)
Lift capacity
705 lbs (320 kg)
Lift capacity - extension deck
265 lbs (120 kg)
Drive speed - stowed
0~2.5 mph (0~4 km/h)
Drive speed - raised
0~0.5 mph (0~0.8 km/h)
Gradeability
25%
Turning radius - inside
0 ft (0 m)
Turning radius - outside
7 ft 7 in (2.35 m)
Raise / Lower speed
55 /40 s
Controls
Proportional
Drives
Dual front wheel
Brakes
Dual rear wheel
Tire size (solid non-marking)
16 in * 5 in (406 mm * 125 mm)
Power
Power source
24V DC (4*6V, 225Ah batteries)
Hydraulic system capacity
4.23 gal (16 L)
Power
3 KW
Weight
Indoor
5798 lbs (2630 kg)
Indoor & outdoor general
6063 lbs (2750 kg)
Standards Compliance
CE/ ISO/ ADR/ ARAMCO

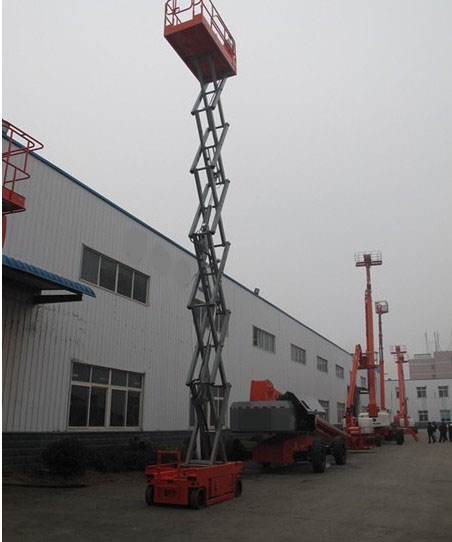

    GTJZ1012E Self-propelled Electric Scissor lifts are mostly applied to flat indoor or outdoor. The body is pleasing to eye and flexible to operate. The main engine can travel and turn automatically. It features imported hydraulic components, explosion-proof pipe unit and emergency descending switch; motor driven ascending, descending and travelling function; low in noises and free of air pollution; durable, chip-free, skid-proof and traceless tires without scratching the ground; optimized product control mode and procedure with the premise of safety, bringing much more humanized operation.

1. Small turning radius: The outside turning radius of the tires is
7 ft 7 in ( 2.35 m) and the inside turning radius is 0 ft (0 m).
2. Large load capacity: The maximal load capacity reaches 705 lbs (320 kg) and the load capacity of the extended platform is up to 265 lbs (120 kg).
3. Sufficient electric power: Trojan batteries imported from USA are used, single cell capacity is up to 260Ah; 5-7h duration in normal operation.
4. Advanced technology: Adpot DeltaTech control system and fault self-diagnosis technique, with anti-collision transducer option.
5. High reliability: Imported key components and the waterproof capacity of major electric components is up to IP65.
6. Good safety: Equipped with horizontal switch and weighing sensor, which ensures the safety of equipment and operators.
7. Easy maintenance: Dual revolving doors, easy to maintain.
8. Energy-saving and environment-friendly: Low noise, no pollution, up to energy-saving and environmental protection standard.
