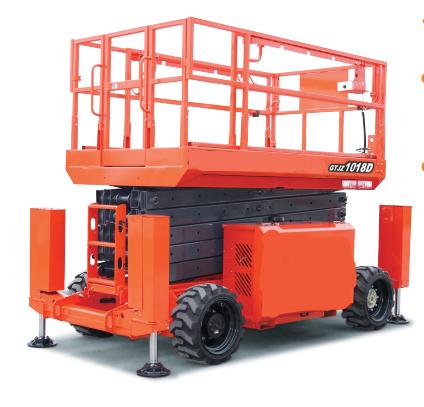

GTJZ1018D
Platform height 32.8 ft (10 m)
Working height 39 ft (12 m)
Platform extension 992 lbs (450 kg)
Payload 992 lbs (450 kg)
GTJZ1018D
|
Models
|
GTJZ1018D
|
|
|
Dimensions
|
||
|
Platform height max.
|
32.8 ft (10 m)
|
|
|
Working height max.
|
39 ft (12 m)
|
|
|
Platform extended
|
4.92 ft (1.5 m)
|
|
|
OverallLength (stowed,with outrigger/without)
|
12ft/10.8ft(3.77m/3.29m)
|
|
|
Overall width(stowed)
|
5.77 ft (1.76 m)
|
|
|
Overall height
(stowed,guardrail folded/unfolded) |
6.36 ft (1.94 m)
/8.4ft(2.56m) |
|
|
Wheelbase
|
7.5 ft (2.286 m)
|
|
|
Ground Clearance
|
0.72 ft (0.22 m)
|
|
|
Platform size (L*W*H)
|
9.17 ft*5.24ft*3.6ft
(2.795 m*1.6 m*1.1 m) |
|
|
Productivity
|
||
|
Max. platform occupancy
|
4(indoor), 2(outdoor)
|
|
|
Lift capacity
|
992 lbs (450 kg)
|
|
|
Lift capacity - extension outreach
|
308 lbs (140 kg)
|
|
|
Driving speed - stowed
|
0~5.6 km/h
|
|
|
Driving speed - raised
|
0~0.48 km/h
|
|
|
Gradeability
|
35%
|
|
|
Turning radius - inside
|
6.9 ft (2.11 m)
|
|
|
Turning radius - outside
|
15 ft (4.6 m)
|
|
|
Rising / Falling speed (without loading)
|
34s~44s / 40s~45s
|
|
|
Controls
|
Proportional
|
|
|
Drive&steer model
|
4WD*2WS
|
|
|
Hydraulic system pressure
|
24Mpa
|
|
|
Tire Size/type
|
26*12-16.5/solid foam
|
|
|
Power
|
||
|
Control voltage
|
12VDC
|
|
|
Hydraulic system tank vol.
|
90 L
|
|
|
Fuel tank vol.
|
48 L
|
|
|
Weight
|
||
|
Overall weight
(with outrigger/without) |
9061 lbs (4110 kg) /
8047 lbs (3650 kg) |
|
|
StandardsCompliance
|
CE/ISO/ADR/ARAMCO
|
|
GTJZ1018D Diesel Self-propell Scissor Lift are mainly used in flat indoor or outdoor. The body is pleasing to eye; the product is compact in structure and flexible to operate. The main engine is designed as dual-driven dual steering with self-travelling and turning functions. It features imported hydraulic components, explosion-proof pipe unit and emergency descending unit; hydraulically driven travelling function; low in noises and free of air pollution; durable, chip-free, skid-proof and traceless tires without scratching the ground; optimized product control mode and procedure with the premise of safety, bringing much more humanized operation.
1. Small turning radius: The outside turning radius of the tires is 15 ft (4.6 m) and the inside turning radius is 6.9 ft (2.11 m).
2. Large load capacity: The maximal load capacity reaches 992 lbs (450 kg) and the load capacity of the extended platform is up to 308 lbs (140 kg).
3. Advanced technology: Adpot DeltaTech control system and fault self-diagnosis technique, with anti-collision transducer option.
4. High reliability: Imported key components and the waterproof capacity of major electric components is up to IP65.
5. Good safety: Equipped with horizontal switch and weighing sensor, which ensures the safety of equipment and operators.
6. Easy maintenance: Dual revolving doors, easy to maintain.
7. Energy-saving and environment-friendly: Low noise, no pollution, up to energy-saving and environmental protection standard.
