GTBZ25 parts
Platform height 82 ft 7 in (25.2 m)
Working height 89 ft 2 in (27.2 m)
Payload 1058 lbs (480 kg)
Outreach 71 ft 9 in (21.9 m)
GTBZ25 parts
|
Model
|
GTBZ25
|
|
|
Dimensions
|
||
|
Platform height
|
82 ft 7 in (25.2 m)
|
|
|
Working height
|
89 ft 2 in (27.2 m)
|
|
|
Horizontal outreach
|
71 ft 9 in (21.9 m)
|
|
 Length (stowed) |
37 ft 2 in (11.35 m)
|
|
 Width (stowed) |
8 ft 2 in (2.49 m)
|
|
 Height (stowed) |
9 ft 2 in (2.8 m)
|
|
|
Ground clearance
|
1 ft 4 in (0.43 m)
|
|
 Wheel base |
9 ft 8 in (3 m)
|
|
|
Size of platform (L*W*H)
|
4 ft 8 in *2 ft 8 in * 4 ft 1 in (1.45 m *0.85 m *1.24 m)
|
|
|
Performance Data
|
||
|
Platform Capacity
|
2
|
|
|
Load capacity of platform
|
1058 lbs (480 kg)
|
|
|
Turntable rotation
|
360°
|
|
|
Platform rotation
|
160°
|
|
|
Driving speed (stowed)
|
0～3.2 mph (5.2 km/h)
|
|
|
Driving speed (raised)
|
0～0.7 mph (1.1 km/h)
|
|
|
Gradeability
|
30% (2WD) 45% (4WD)
|
|
|
Outside turning radius
|
19 ft 2 in (5.84 m)
|
|
|
Inside turning radius
|
8 ft (2.44 m)
|
|
|
Tail swing
|
4 ft 3 in (1.32 m)
|
|
|
Allowable slope
|
3°
|
|
|
Drive * steering
|
2 WD * 2 WS /4 WD * 2 WS
|
|
|
Tire size/type
|
12.00 - 20 / Solid
|
|
|
Engine
|
||
|
Power source
|
diesel engine
|
|
|
Drive Type
|
Hydraulic pressure
|
|
|
Volume of hydraulic oil tank
|
160 L
|
|
|
Power
|
60 KW
|
|
|
Weight
|
||
|
Overall weight
|
33775 lbs (15320 kg) - (2WD)
33929 lbs (15390 kg) - (4WD) |
|
|
Standards compliant
|
CE、ISO、GOST
|
|

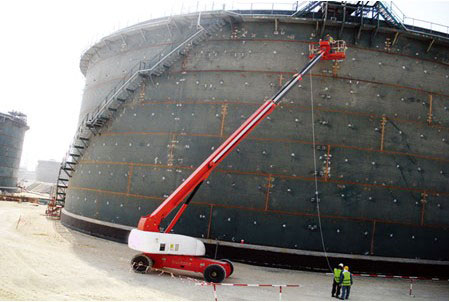

GTBZ25 Telescopic Boom Lift applies to shipbuilding, large steel structure building, construction, civil engineering and advertising industries, etc. This aerial work platform is safe and reliable. Designed with the concept of durability, solidity, and excellent performance, it can meet the need of extremely challenging operating conditions. The maximal grade ability of 45% allows parking and restarting on such slope without down sliding. Imported from USA, the engine is in a position to supply large power; the solid tires enjoy a long life. PLC is imported originally for military purpose. Program can be set and developed as required by customers.
1. Wide operating range: 360° full direction operation at the height from 0~89 ft 2 in (27.2 m), with a horizontal outreach by 71 ft 9 in (21.9 m).
2. Large load capacity: The maximum load capacity is 1058 lbs (480 kg); the platform can hold 2 operators.
3. Powerful driving force: The engine is of famous international brand, large in power and excellent in grade ability. The maximal grade ability can be up to 45%.
4. Advanced technology: Self-adaption floating device, fault self-diagnosis technology, auto-leveling system, and anti-collision transducer device.
5. High reliability: The engine, key hydraulic components and electric components are all of international brand, designed in conformity with EN280, AS1418.10 and GB25849.
6. Good safety: Overload limit and rollover protection system.
7. Easy maintenance: Swing-out engine, easy to maintain.
1. Wide operating range: 360° full direction operation at the height from 0~89 ft 2 in (27.2 m), with a horizontal outreach by 71 ft 9 in (21.9 m).
2. Large load capacity: The maximum load capacity is 1058 lbs (480 kg); the platform can hold 2 operators.
3. Powerful driving force: The engine is of famous international brand, large in power and excellent in grade ability. The maximal grade ability can be up to 45%.
4. Advanced technology: Self-adaption floating device, fault self-diagnosis technology, auto-leveling system, and anti-collision transducer device.
5. High reliability: The engine, key hydraulic components and electric components are all of international brand, designed in conformity with EN280, AS1418.10 and GB25849.
6. Good safety: Overload limit and rollover protection system.
7. Easy maintenance: Swing-out engine, easy to maintain.
