GTJZ1412 parts
Platform height 45 ft (13.8 m)
Working height 52 ft (15.8 m)
Platform extension 3 ft (0.9 m)
Payload 500 lbs (227kg)
GTJZ1412 parts
|
Models
|
GTJZ1412
|
  |
|
Dimensions
|
||
 Platform height max. |
45 ft (13.8 m)
|
|
|
Working height max.
|
52 ft (15.8 m)
|
|
 Platform extended |
3 ft (0.9 m)
|
|
 Length - stowed |
9 ft (2.76 m)
|
|
|
Width - stowed
|
4 ft (1.25 m)
|
|
 Height - guardrail folded |
7.2 ft (2.20 m)
|
|
|
Height - guardrail unfolded
|
8.53 ft (2.60 m)
|
|
 Wheelbase |
7.3 ft (2.22 m)
|
|
|
Ground clearance
|
0.33 ft (0.1 m)
|
|
|
Platform size (L*W*H)
|
8.66 ft * 2.66 ft * 3.6 ft (2.64 m*0.81 m*1.1 m)
|
|
|
Productivity
|
||
|
Max. platform occupancy
|
2 (indoor), 1(outdoor)
|
|
|
Lift capacity
|
500 lbs (227kg)
|
|
|
Driving speed - stowed
|
0~3.2 km/h
|
|
|
Driving speed - raised
|
0~0.8 km/h
|
|
|
Gradeability
|
25%
|
|
|
Turning radius - inside
|
0 ft (0 m)
|
|
|
Turning radius - outside
|
8.4 ft (2.56 m)
|
|
|
Raising / Falling speed
|
75s~85s /55s~63s
|
|
|
Controls
|
Proportional
|
|
|
Drive &steer model
|
2WD, front -wheel
|
|
|
Brake
|
2 rear-wheel
|
|
|
Tire
|
380 mm * 125 mm/solid
|
|
|
Power
|
||
|
Power source
|
24V DC (4*6V, 225Ah batteries)
|
|
|
Hydraulic system tank vol.
|
25 L
|
|
|
Power
|
4.5 KW
|
|
|
Weight
|
||
|
overall weight ( indoor/outdoor )
|
6834 lbs (3100 kg)
|
|
|
Standards Compliance
|
CE/ ISO/ ADR/ ARAMCO
|
|

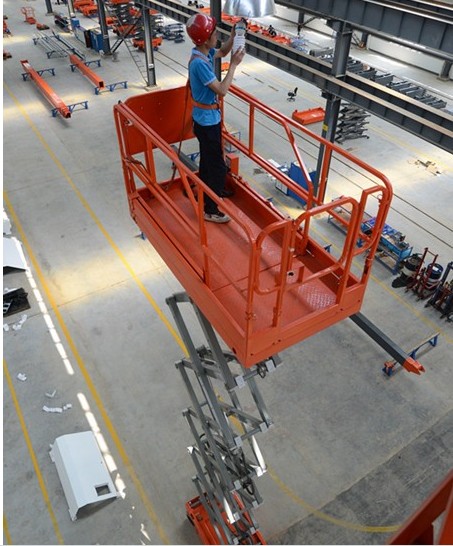

- GTJZ1412 Self-propelled hydraulic scissor lifts are mostly applied to flat indoor or outdoor. The body is pleasing to eye and flexible to operate. The main engine can travel and turn automatically. It features imported hydraulic components, explosion-proof pipe unit and emergency descending switch; hydraulically driven ascending, descending and travelling function; low in noises and free of air pollution; durable, chip-free, skid-proof and traceless tires without scratching the ground; optimized product control mode and procedure with the premise of safety, bringing much more humanized operation.
1. Small turning radius: The outside turning radius of the tires is 8.4 ft (2.56 m) and the inside turning radius is 0 ft (0 m).
2. Large load capacity: The maximal load capacity reaches 500 lbs (227kg).
3. Sufficient electric power: Trojan batteries imported from USA are used, single cell capacity is up to 260Ah; 5-7h duration in normal operation.
4. Advanced technology: Adpot DeltaTech control system and fault self-diagnosis technique, with anti-collision transducer option.
5. High reliability: Imported key components and the waterproof capacity of major electric components is up to IP65.
6. Good safety: Equipped with horizontal switch and weighing sensor, which ensures the safety of equipment and operators.
7. Easy maintenance: Dual revolving doors, easy to maintain.
8. Energy-saving and environment-friendly: Low noise, no pollution, up to energy-saving and environmental protection standard.
