Engine Kubota D905;
Metal Halide Floodlight;
Hydraulic Mast extension;
Manual Operation Mast Rotation;
Manually Stabilizing Legs;

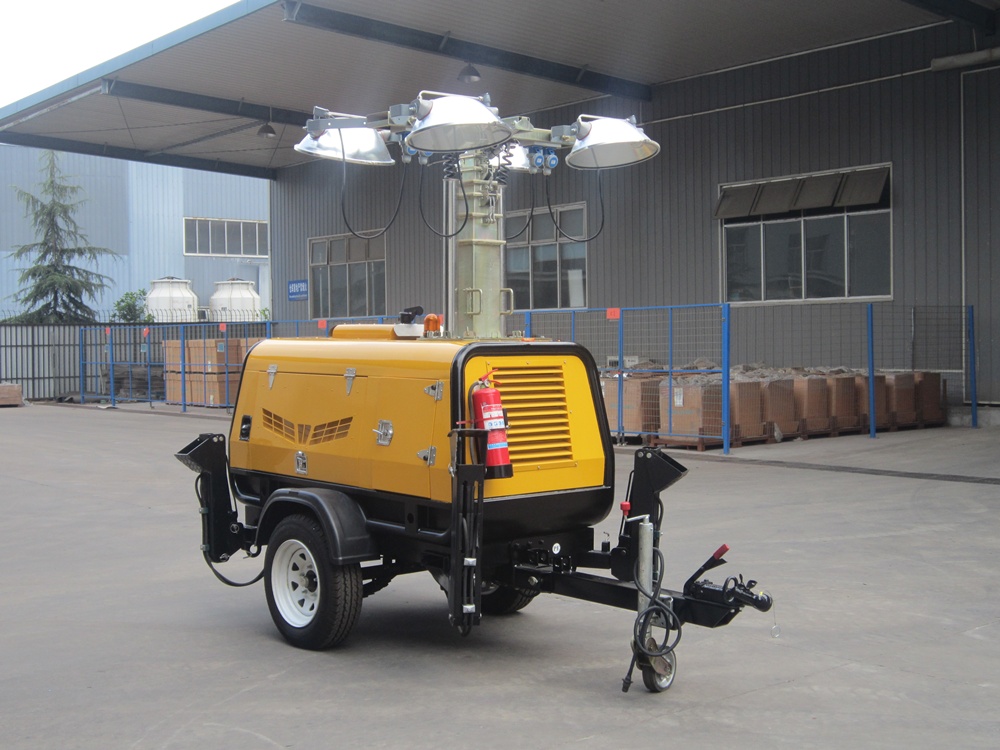

GTLT 09HVL-P6000
| Standard Items | GTLT 09HVL-P6000 | |
| Machine Size(L * W * H)(mm) | 3420*1620*2460 | |
| Mast Height(m, Fully Extended) | 9 | |
| Weight (Dry, kg) | 1350 | |
| Engine model | D905-BG (Kubota,Japan) | |
| Engine Characters | 4 cycle, In line, Watercooled Diesel |
|
| Frequency(Hz) | 50 | 60 |
| Speed(rpm) | 1500 | 1800 |
| Continued Power(KW) | 9.5 | 11.5 |
| Number of Cylinders | 3 | |
| Combustion Type | E-TVCS | |
| Engine Aspiration | Natural | |
| Alternator | Brushless & Single phase | |
| Rating Voltage (V) | 230 | |
| Alternator Insulation | Class H | |
| Fuel Tank Capacity | 120liters (31 US Gallons) | |
| Fuel Tank Operating Hours | 56 hours | |
| Type of Lights | Oval， metal halide floodlight |
|
| Number & Power of Lights | 4×1500W | |
| Mast extension | Hydraulic operation | |
| Mast Rotation | 330° Manual Operation | |
| Light Bar Tilt | 90° DC Electric operation | |
| Stabilizing Legs | Manually | |
| Suspension & Braking System | Leaf spring axle with drum brake | |
| Hitch & tow bar | Ball or O ring & stable hitch in height |
|
| Tire & rim size | 16” | |
| Noise level | 72dB(A) at 7 meters away | |
| Max. qty in a 40'Container | 7 sets | |
Applicable for most of inside and outside place. Asphalt paving, disaster relief, repair
and maintenance of water supply, gasoline, tunnels, and mines, waste disposal, parking
lot, wharf, civil and military airport, as well as various illuminations for combat readiness.
Installed with generator, the light tower works with convenient power supply
Night construction condition has been improved to raise working efficiency and speed.
Characteristic:
Composed by four 1000W or 1400W Metal halides, have high lumen output, good
color rendition and overall lighting, long lamp life.
Lamp frame can rotate horizontal and freely, each lamp can vertical adjust lonely.
Telescope mast use eight sections, automatic lift. Mast is with staleness valve, avoid
to drop suddenly. Mast can extend to 9 meters（height can be customized）.
Installed with generator, one tank gasoline can last 85 or 45 hours, subject to different
lights.
Equipped with big tyres and brake system, increasing its capacity to climb and trail to
move on uneven road. Big tyres also increase touchdown areas to oppose wind beating.
Using waterproof electrical boxes to avoid rain, suit for bad condition
Some details on the machines
l The safe and reliable 8-section telescopic mast powered by hydraulic ram can be
extended to 9 meters height fully.
l The light bar can be adjusted from horizontal to vertical by the control panel operation.
l The hydraulic one-way value with electric control can keep the hydraulic ram at any
position for long time.
l The mast can rotate within 330 degree manually
l The inertia braking system can mostly reduce the collision when the vehicle is braking
l The heavy-duty muffler makes the noise under 72 Db(A) at 7 meters away
l The galvanized mast and the power coated canopy suit the outdoor environment for a
long time
l The electrical devices of the lights are fitted in the weatherproof canopy, and it’s easy
to fix
l The most cable can be retracted in the protective stainless steel tube
l The high-quality and multi-fault protection generator with low-emission diesel engine
and brushless alternator can power all the lights stably and continuously
l Compact designed for easy loading. The maximum 7 sets in a 40 feet container.
l The AL-KO Hexagon rubber suspension system (or option) is suitable for
rough terrain, and the maintenance-free axis’s service lift can be at least 20 years.
l Four manual legs of individual operation are able to support stably and reliably even
on rough ground, so the lighting tower can also work in the 9-grade wind weather.
l The base frame with fully bunded tank helps to avoid fuel leakage.
