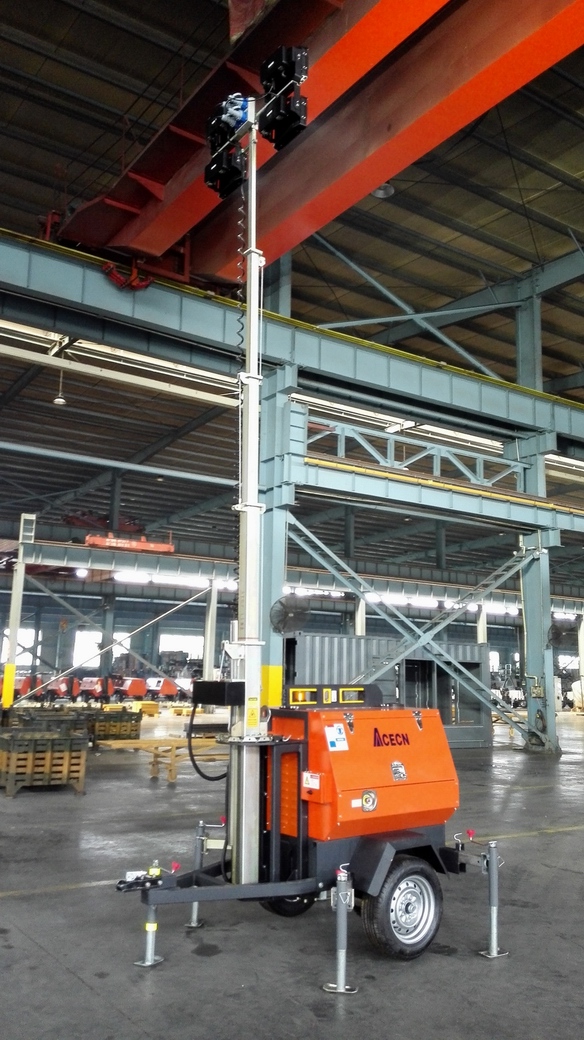

GTLT i7L1000
GTLT i7L1000

GTLT i9L1000 mobile light tower Engine D1105 Max. extension height 9m 76L fuel tank Led light or Metal halide

GTLT i7L1000


Basic Model GTLT i7L1000
Dimensions Length 2300mm(7.5ft)
Width 1360mm(4.5ft)
Height 2550mm(8.4ft)
Loading container Height 2480mm(8.1ft)
Full extending Height 7000mm(22.9ft)
Gross weight  810kg(1785.7 lb)
Engine Model Z482-E4B-ACP-1
Speed(rpm) 1800
Rated power(KW) 4.6
Number of cylinders 2
Engine characters 4 cycles, Water-cooled diesel
Combustion System E-TVS
Engine aspiration Naturally aspirated
Emission level (60Hz) EPA Tier 4
Alternator Model Meccalte LT3N 75/4
Rated power(KVA) 4.5
Frequency (HZ) 60
Rating voltage ( 50Hz) 240/120V
Alternator insulation Class H
Alternator protection grade IP23
Mast & Lights Type of Lights LED Light
Light's fixture Rectagle
Luminous flux (LM) 110000(4*27500)
Number & power of lights 4×250W
Number of mast sections 5
Mast extension Electrical(Vertical, 3500 lb winch)
Mast rotation 359° Manual rotation with self locking
Light tilt Manually
Trailer Trailer suspension & axle with brakes Leaf springs axle without brake
Tow bar A style frame with a supporting jack
Stabilizing legs & number 4 pcs drawable bar with manual jacks
Wheel's rim size & tires 14" Sunraysia rim with regular tires
Tow adapter 2" ball coupler or 3" pintle ring
Tail lights Complex tail lights
Max towing speed 100km/h ( 62 mph)
Additional Features Fuel tank Type Rotational moulding plastic
Fuel tank capacity  76 liters (20 US gallons)
Operating hours with full fuel  160 hours
Generator starting type or controler  Key starting
Power outlet sockets 1 unit of Euro standard 16A/220V single phase power outlet socket
Max. against wind when fully extended 20 m/s (45mph)
Acoustic pressure 68dB(A) at 7 meters away
Max. # of units loading in 40' high container (Some components would be detached) 9
