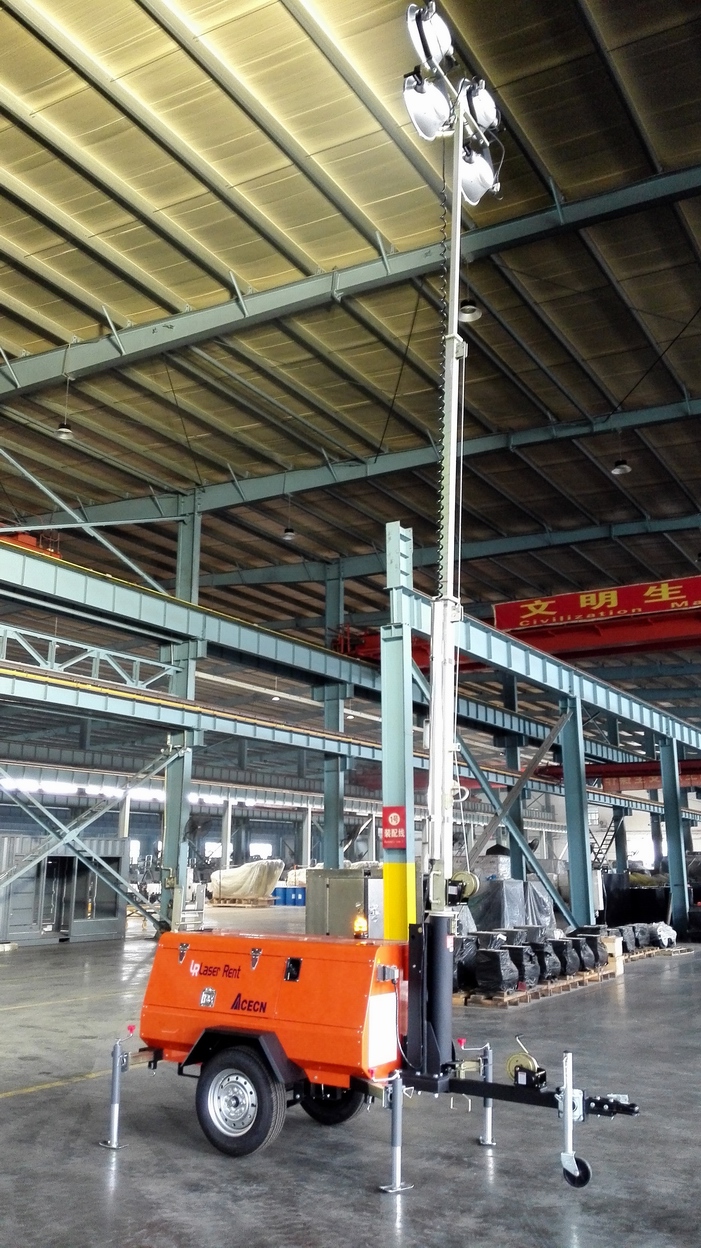

GTLT i9L4000
GTLT i9L4000

mobile light tower,

GTLT i9L4000


Basic Model i9L4000
Dimensions Length 2300mm(7.5ft)
Width 1360mm(4.5ft)
Height 2550mm(8.4ft)
Loading container Height 2480mm(8.1ft)
Full extending Height 9000mm(22.9ft)
Gross weight  810kg(1785.7 lb)
Engine Model D1105-BG
Speed(rpm) 1500
Rated power(KW) 8.4
Number of cylinders 3
Engine characters 4 cycles, Water-cooled diesel
Combustion System E-TVS
Engine aspiration Naturally aspirated
Emission level (60Hz) EPA Tier 2
Alternator Model Meccalte LT3N 130/4 (no AVR)
Rated power(KVA) 6
Frequency (HZ) 50
Rating voltage ( 50Hz) 240/120V
Alternator insulation Class H
Alternator protection grade IP23
Mast & Lights Type of Lights Metal halide Light
Light's fixture Oval
Luminous flux (LM) 440000(4*110000)
Number & power of lights 4×1000W
Number of mast sections 5
Mast extension Electrical(Vertical, 3500 lb winch)
Mast rotation 359° Manual rotation with self locking
Light tilt Manually
Trailer Trailer suspension & axle with brakes Leaf springs axle with mechanical  brake
Tow bar A style frame with a supporting jack
Stabilizing legs & number 2" ball coupler or 3" pintle ring
Wheel's rim size & tires 4 pcs drawable bar with manual jacks
Tow adapter 14" Sunraysia rim with regular tires
Tail lights Complex tail lights
Max towing speed 100km/h ( 62 mph)
Additional Features Fuel tank Type Rotational moulding plastic
Fuel tank capacity  76 liters (20 US gallons)
Operating hours with full fuel 70 hours
Generator starting type or controler  Auto starting
Power outlet sockets
Max. against wind when fully extended 20 m/s (45mph)
Acoustic pressure 68dB(A) at 7 meters away
Max. # of units loading in 40' high container (Some components would be detached) 9
