Engine Kubota D1703
Metal Halide Floodlight
Hydraulic Mast extension
Manual Operation Mast Rotation
Hydraulic Stabilizing Legs

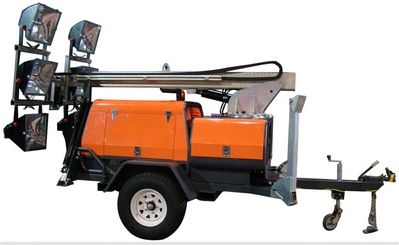

GTLT10 HKP 9000
Standard Items | GTLT 10HKP 9000 | |
Length | 4800mm (10'5'') | |
Width | 2830mm (5'11'') | |
Height | 2900mm (8'2'') | |
Full Extending Height(m/feet) | 10m (29'7'') | |
Gross Weight | 2450kg (4034 lb) | |
Engine Model | D1703-BG(KUBOTA) | 404D-22G(PERKINS) |
Speed(rpm) | 1500/1800 | 1500/1800 |
Number of Cylinders | 3 | 4 |
Engine Characters | 4 cycles, Watercooled diesel | |
Combustion System | E-TVCS | Indirect injection |
Engine Aspiration | Naturally aspirated | |
Emission Level | Regular | |
Standard Configuration | PI144D(STAMFORD) | |
Frequency(Hz) | 50/60 | |
Rating Voltage(50/60 Hz) | 400/230 VAC | |
Alternator Insulation | Class H | |
Alternator Protection Grade | IP23 | |
Type of Lights | Double-end metal halide | |
Light's Fixture | Rectangle | |
Luminous Flux | 165000 LM/light | |
Number & Power of Lights | 6*1500W | |
Number of Mast Sections | 3 | |
Mast Lifting | Hydraulic | |
Mast Extension | Hydraulic | |
Mast Rotation | Hydraulic | |
Light BarTilt | 12VDC Electric linear actuator | |
Alex with Suspension & Axle with Brakes | Standard leaf springs & tandem axle with electromagnetic drum brakes | |
Tow Bar | Retractable & adjustable supporting wheel tow bar | |
Stabilizing Legs & Number | 4 pcs Hydraulic retractable legs | |
Wheel's Rim Size& Tires | 16'' rim with off road tires | |
Tow Adapter | 2'' ball adapter | |
Tail Light | Tail light kit | |
Max Towing Speed | 100km/h (62 mph) | |
Electric Standard and Configuration | Australia electric standard, Australia & Mining configuration | |
Fuel Tank Type | Double wall | |
Fuel Tank Capacity | 228 liters(60 US gallons) | |
Operating Hours with Full Fuel | 72 hours | |
Hydraulic Components | Mining standard hose | |
Wires & Electric Components | IP65 | |
Generator Starting Type or Controller | SUNIGHT 002 | |
Runing Indicator of Generator | Rotating LED light | |
Extinguisher | Only supply the mounting bracket | |
Power Outlet Sockets | 2 ps Australia standard 15A/240V single phase socket | |
Max. against Wind When Fully Extended | 22m/s (50 mph) | |
Acoustic Pressure | 70dB(A) at 7m (23') away | |
Standard Colour | Optional regular canopy's colour, galvanized masts, tow bar & stabilizing legs | |
Max. # of Units Loading in a 40''Container | 3 |
Applicable for
·Applicable for most of inside and outside place. Asphalt paving, disaster relief, repair and maintenance of water supply,
gasoline, tunnels, and mines, waste disposal, parking lot, wharf, civil and military airport, as well as various illuminations
for combat readiness.
·Installed with generator, the light tower works with convenient power supply.
·Night construction condition has been improved to raise working efficiency and speed.
Characteristic:
·Composed by four 1500W Metal halides, have high lumen output, good color rendition and overall lighting, long lamp life.
· Lamp frame can rotate horizontal and freely, each lamp can vertical adjust lonely.
·Telescope mast use three section, automatic lift. mast with staleness valve, avoid to drop suddenly. Mast can extend to
9.0 meters(height can be change).
·Installed with generator, one tank gasoline can last 80 hours. If use city power, it’s long term.
·Equipped with big tyres and brake system, increasing its capacity to climb and trail to move on uneven road. Big tyres also
increase touchdown areas to oppose wind beating.
·Using waterproof electrical boxes to avoid rain, suit for bad condition.
·To satisfy customer requirement, we can produce this tower according to your requirement, such as lamp quantity, power,
mast height, generator etc.
