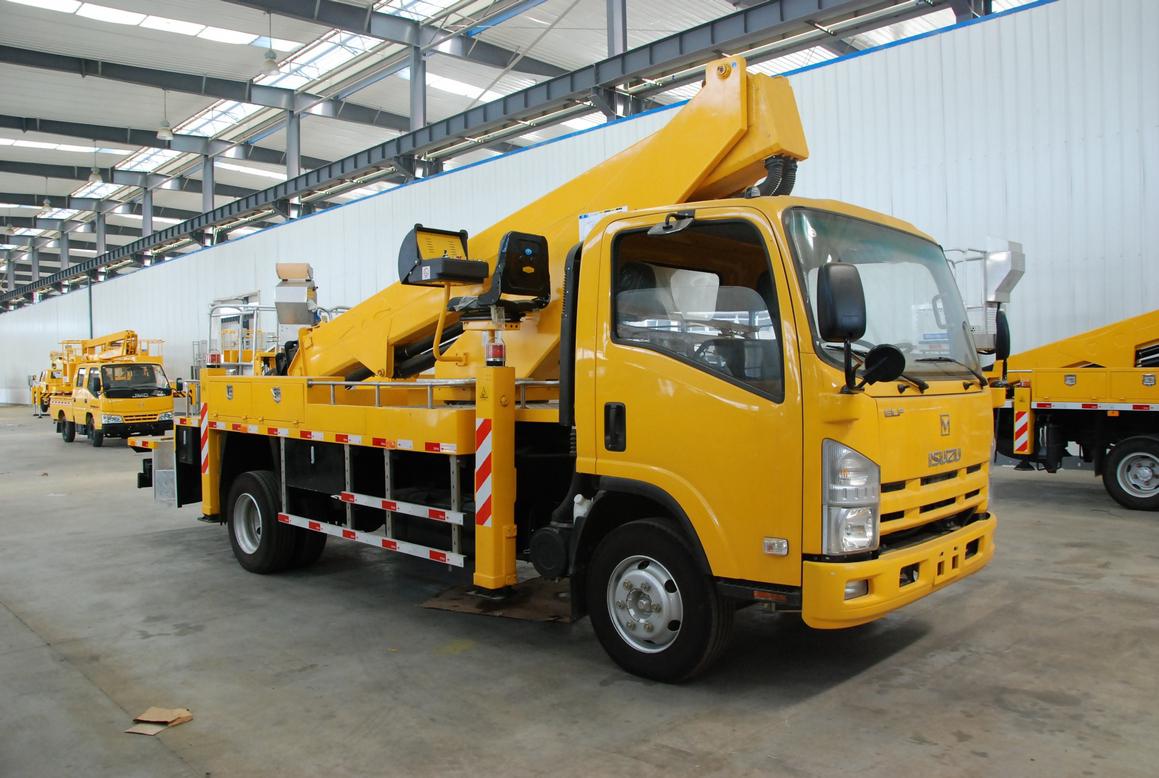

GTTM 22
Telescopic boom Max working height 22m; Max working range 12.3/14.3m;
GTTM 22
|
Items
|
Units
|
Data
|
|
|
Traveling
|
|||
|
Length
|
mm
|
7770
|
|
|
Width
|
mm
|
2230
|
|
|
Height
|
mm
|
3200
|
|
|
Crew
|
People
|
3
|
|
|
Weight
|
kg
|
9100
|
|
|
Max Speed
|
km/h
|
85
|
|
|
Wheelbase
|
mm
|
4000+1300
|
|
|
Approach angle
|
°
|
21
|
|
|
Departure angle
|
°
|
10
|
|
|
Axle Load
|
Front
|
kg
|
3230
|
|
Rear
|
kg
|
5870
|
|
|
Working performance
|
|||
|
Min Ground Clearance
|
mm
|
215
|
|
|
Max under chassis height
|
m
|
-6
|
|
|
Turret Slewing Speed
|
s
|
≤300
|
|
|
Basket Safe Work Load
|
kg
|
220/120
|
|
|
Max Working Height
|
m
|
22
|
|
|
Max Range @ Max Work Height
|
m
|
3.3
|
|
|
Max Working Range
|
m
|
12.3 (220kg)
14.3 (120kg)
|
|
|
Max Height @ Max Work Range
|
m
|
4.4
|
|
|
Outriggers Acting Time
|
s
|
≤50
|
|
|
Basket Rotation
|
º
|
±65
|
|
|
Chassis
|
ISUZU QL11009KARY
|
|
Engine
|
ISUZU 4HK1-TCG40 intercool turbocharged diesel engine
Max power: 139KW
|
|
Driver Cab
|
Single-row seat, with air conditioner and radio
Allow 3 people
|
|
Coaming and Walking Plate
|
Fixed coaming, Aluminum-alloy anti-skid checker plate
|
|
PTO System
|
Flexible shaft operation, PTO engage the gear-box through transmission shaft
|
|
Work Platform
|
Aluminum-alloy structure
Dimension:1380mm*700mm* 1100mm
Safe work load: 220kg/120kg, ±65° left-right rotation
|
|
Boom
|
4-section synchronized telescopic booms
|
|
Rotation
|
360°continuous rotating
|
|
Outriggers
|
H-shape, individual adjustment available
|
|
Control Box
|
Control box at both platform and turret
|
|
Hydraulic System
|
Main pump, electrical emergency descent pump
Multi-way valve at chassis
International well reputation suppliers’Proportional valve, solenoid directional valve,
two-way balance valve, hydraulic lock, hose and inlet
|
|
Safety Device
|
Working range limit device
Outrigger supporting sensor, outrigger in-position sensor
Boom-outrigger interlock, interlock, anti-collision device
Emergency descent pump, emergency manual descent, emergency stop switch (at 2 place), PTO-traveling interlock
Luffing Angle auto control, chain tension auto balance, chain protection
Start-stop slope control, work basket overload limit switch
|
|
Leveling System
|
Hydraulic automatic leveling
|
|
Others
|
Engine stop-start switch at both basket and turret
One-side working, auto stow, hour meter
Optional: hydraulic socket or 220V AC power plug at work basket
|
