GTTM 33

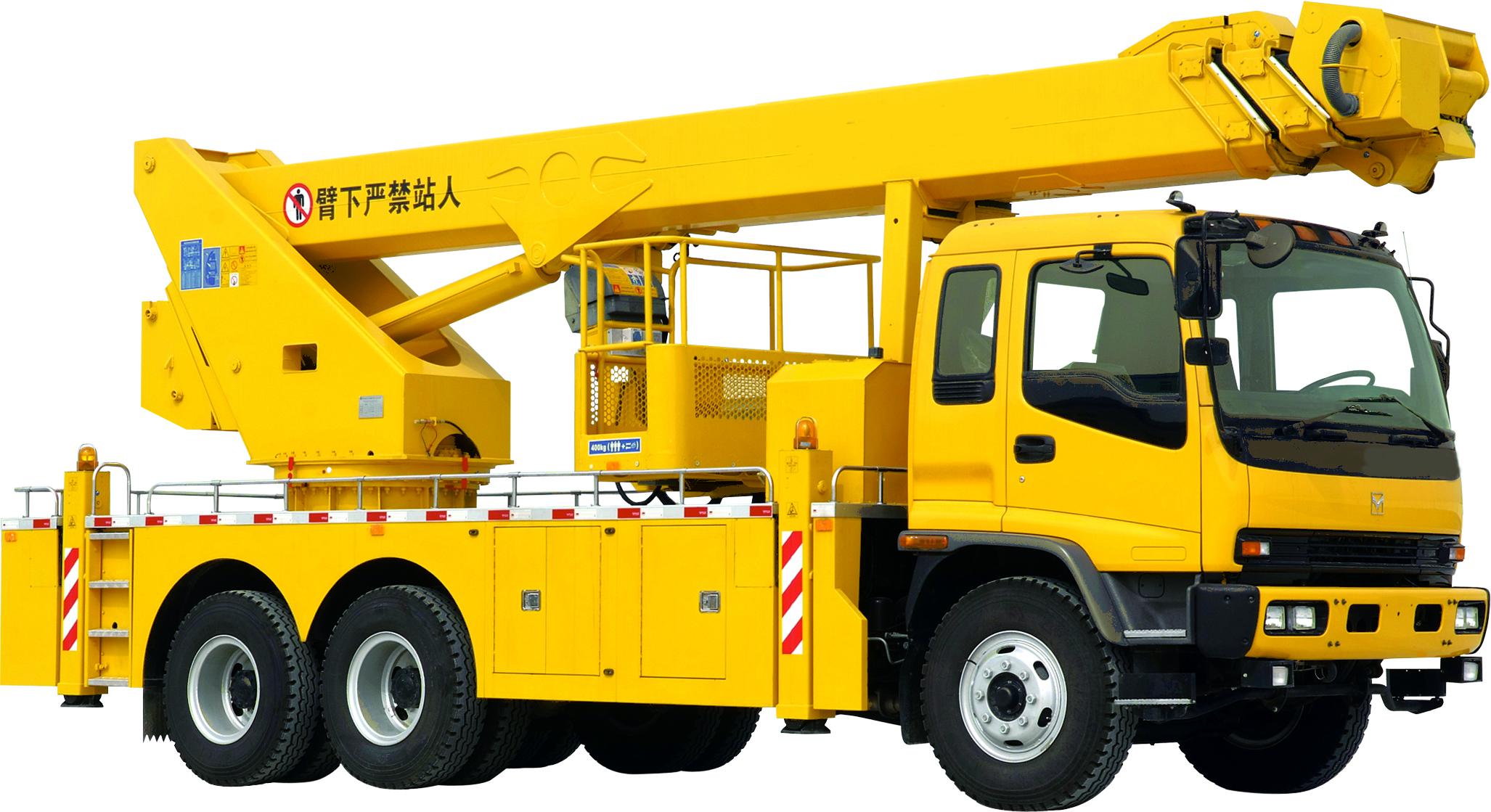

Telescopic boom
Max working height 33m;
Max working range 17.5/20m;
GTTM 33
|
Items
|
Units
|
Data
|
||
|
GTTM33-KA
|
GTTM33-KD
|
|||
|
Traveling
|
||||
|
Length
|
mm
|
8810
|
8950
|
|
|
Width
|
mm
|
2500
|
2500
|
|
|
Height
|
mm
|
3790
|
3850
|
|
|
Crew
|
People
|
3
|
2
|
|
|
Weight
|
kg
|
20875
|
21240
|
|
|
Max Speed
|
km/h
|
90
|
90
|
|
|
Wheelbase
|
mm
|
4000+1300
|
4200+1350
|
|
|
Approach angle
|
°
|
26
|
15
|
|
|
Departure angle
|
°
|
14
|
10
|
|
|
Axle Load
|
Front
|
mm
|
5205
|
6630
|
|
Rear
|
mm
|
15670
|
14610
|
|
|
Working performance
|
||||
|
Min Ground Clearance
|
mm
|
255
|
||
|
Max under chassis height
|
m
|
-6
|
||
|
Turret Slewing Speed
|
s
|
≤300
|
||
|
Basket Safe Work Load
|
kg
|
400/200
|
||
|
Max Working Height
|
m
|
33
|
||
|
Max Range @ Max Work Height
|
m
|
7/15
|
||
|
Max Working Range
|
m
|
17.5/20
|
||
|
Max Height @ Max Work Range
|
m
|
25
|
||
|
Outriggers Acting Time
|
s
|
≤50
|
||
|
Basket Rotation
|
º
|
±90
|
||
|
Chassis
|
QL1250DAFZY(GTTM33-KA)
Axor 2529(GTTM33-KD)
|
|
Engine
|
6HK1-TCSG40 turbocharged diesel engine
Max power: 206KW
OM 906 LA.IV/3 diesel engine
Max power: 215KW
|
|
Driver Cab
|
Cab-over-engine, single row seat with sleep berth
Allow 3/2 people, with air conditioner
|
|
Coaming and Walking Plate
|
Fixed coaming, anti-skid checker plate
|
|
PTO System
|
Pneumatic operation, PTO directly engaged gear-box
|
|
Work Platform
|
Aluminum-alloy structure
Dimension:1700mm*700mm*1100mm
Safe work load: 400kg/200kg, ±90° left-right rotation
|
|
Boom
|
3-section main telescopic booms + 2-section secondary telescopic booms + jib
|
|
Rotation
|
360°continuous rotating
|
|
Outriggers
|
H-shape, individual adjustment available
|
|
Control Box
|
Control box at both platform and turret
|
|
Hydraulic System
|
Electro-hydraulic proportional control
Maneuver speed adjustable
Emergency descent pump (drive by separate diesel engine)
|
|
Safety Device
|
Outrigger supporting sensor, boom-outrigger interlock, emergency descent pump, emergency stop switch
Leveling indicator, range limit switch, Limitation to boom’s extreme position, anti-collision basket
|
|
Leveling System
|
Electro-hydraulic leveling
|
|
Others
|
Work engine ignition, blanker, lights for night working , work platform & ground intercom system(cable)
|
