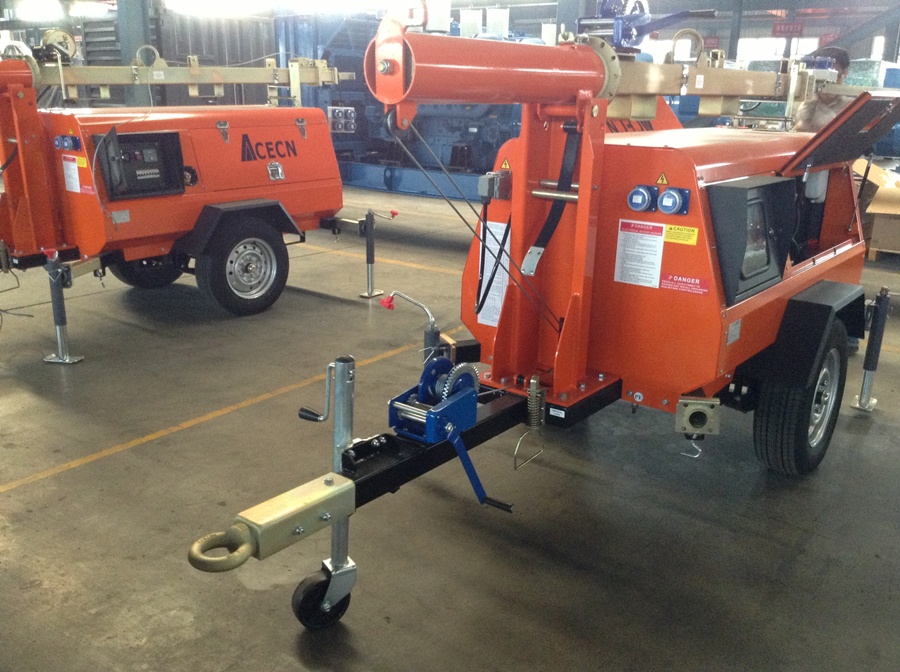

GTLT 09TN 4000
Engine Kubota D1105
Metal Halide Floodlight
Manually Mast extension
Manually Mast Rotation
Manually Stabilizing Legs
GTLT 09TN 4000
| Standard Items | GTLT 09TN 4000 | |
| Length | 4360mm (14'4'') | |
| Width | 1430mm (4'8'') | |
| Height | 1450mm (4'9'') | |
| Full Extending Height(m/feet) | 9m (29'6'') | |
| Gross Weight | 960kg (2115 lb) | 965kg (2125 lb) |
| Engine Model | D1105(KUBOTA) | 380D(LD) |
| Speed(rpm) | 1500/1800 | |
| Number of Cylinders | 3 | |
| Engine Characters | 4 cycles, Watercooled diesel | |
| Combustion System | E-TVS | Direct injection |
| Engine Aspiration | Naturally aspirated | |
| Emission Level(50/60 Hz) | Regular | |
| Standard Configuration | SPARKS | |
| Frequency(Hz) | 50/60 | |
| Rating Voltage（50/60 Hz） | 230/240-120 VAC | |
| Alternator Insulation | Class H | |
| Alternator Protection Grade | IP23 | |
| Type of Lights | Double-end metal halide | |
| Light's Fixture | Oval | |
| Luminous Flux | 110000 LM/light | |
| Number & Power of Lights | 4*1000W | |
| Number of Mast Sections | 3 | |
| Mast Lifting | Manually | |
| Mast Extension | Manually | |
| Mast Rotation | Manually, Max.330°lockable | |
| Light Tilt | Manually | |
| Trailer Suspension & Axle with Brakes | Leaf springs & single axle without brake | |
| Tow Bar | Retractable & adjustable supporting wheel tow bar | |
| Stabilizing Legs & Number | 4 pcs extendable bar with manually retractable jacks | |
| Wheel's Rim Size& Tires | 14'' rim with regular tires | |
| Tow Adapter | 2'' or 50 mm ball adapter | |
| Tail Lights | Tail reflector | |
| Max Towing Speed | 100km/h (62 mph) | |
| Fuel Tank Type | Rotaional moulding plastic | |
| Fuel Tank Capacity | 170 liters (45 US gallons) | |
| Operating Hours with Full Fuel | 120 hours | |
| Wires & Electric Components | Regular | |
| Generator Starting Type or Controller | Key starting | |
| Max. against Wind When Fully Extended | 20 m/s (45 mph) | |
| Acoustic Pressure | 72dB(A) at 7m (23') away | |
| Standard Colour | Orange or yellow canopy, black chasis, galvanized masts, tow bar & stabilizing legs | |
| Max. # of Units Loading in a 40' High Container | 12 or 14 | |
Applicable for:
Applicable for most of inside and outside place. Asphalt paving, disaster relief, repair and maintenance of water supply, gasoline, tunnels, and mines, waste disposal, parking lot, wharf, civil and military airport, as well as various illuminations for combat readiness.
Installed with generator, the light tower works with convenient power supply
Night construction condition has been improved to raise working efficiency and speed.
Options available please further check.
Characteristic:
Composed by four 1000W Metal halides, have high lumen output, good color rendition and overall lighting, long lamp life.
Lamp frame can rotate horizontal and freely, each lamp can vertical adjust lonely.
Telescope mast use three section, automatic lift. mast with staleness valve, avoid to drop suddenly. Mast can extend to 9 meters（height can be customized as per your case after calculations in our side）.
Installed with generator, one tank gasoline can last 13 hours. If use city power, it’s long term.
Equipped with 14” tyres and brake system, increasing its capacity to climb and trail to move on uneven road. 14” tyres also increases touchdown areas to oppose wind beating.
Using waterproof electrical boxes to avoid rain, suit for bad condition
