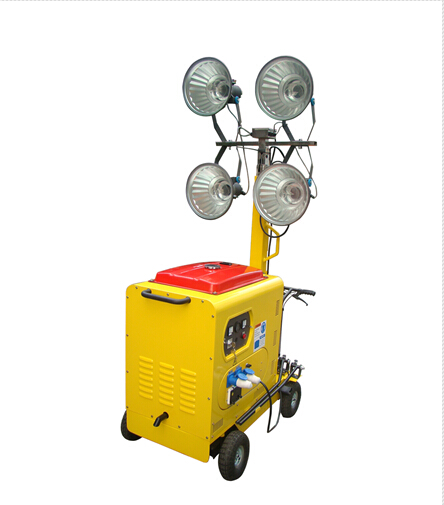

GTLT05 CL 1600
Engine 178F
Metal Halide Spotlight
Manually Mast extension
Manually Stabilizing Legs
GTLT05 CL 1600
| Standard Items | GTLT 05CL 4000 | GTLT 05CL 1600 | |
| Length | 1295mm (4'3'') | 1170mm (3'10'') | |
| Width | 900mm (2'11½'') | ||
| Height | 2350mm (7'8'') | ||
| Full Extending Height(m/feet) | 5.2m (17') | ||
| Gross Weight | 150kg (330 lb) | 136kg (300 lb) | |
| Engine Model | CH440(KOHLER) | KD225(KOHLER) | 178F(CD) |
| Speed(rpm) | 3000/3600 | ||
| Number of Cylinders | 1 | ||
| Engine Characters | 4 cycles, Air-cooled diesel | ||
| Combustion System | Ignition | Direct injection | |
| Engine Aspiration | Naturally aspirated | ||
| Emission Level | Regular | ||
| Standard Configuration | SPARKS | ||
| Frequency(Hz) | 50/60 | ||
| Rating Voltage(V,AC) | 230/240-120 VAC | ||
| Alternator Insulation | Class H | ||
| Alternator Protection Grade | IP23 | ||
| Type of Lights | Regular metal halide | ||
| Light's Fixture | Round | ||
| Luminous Flux | 110000 LM/light | 40000 LM/light | |
| Number & Power of Lights | 4*1000W | 4*400W | |
| Number of Mast Sections | 4 | ||
| Mast Extension | Manually | ||
| Mast Rotation | Not available | ||
| Light Tilt | Manually | ||
| Summary | Small & simple wheels without brakes | ||
| Stabilizing Legs & Number | 4 pcs jacks | ||
| Wheel Diameter | 10'' | ||
| Fuel Tank Type | Punch forming steel sheet | ||
| Fuel Tank Capacity | 31 liters (8 US gallons) | 38 liters (10 US gallons) | |
| Operating Hours with Full Fuel | 4 hours | 63 hours | |
| Wires & Electric Components | Regular | ||
| Generator Controller | Manually | Key starting | |
| Genrator Canopy | Open style with steel pipe frame & top fuel tank | Weather proof | |
| Max. against Wind When Fully Extended | 10 m/s (23 mph) | ||
| Acoustic Pressure | 79dB(A) at 7 meters away | ||
| Standard Colour | Yellow except the stainless or galvanized metal components | ||
| Max. # of Units Loading in a 40' High Container | 22 | 23 | |
Application
1.Applicable for most of inside and outside place. Asphalt paving, disaster relief, repair and maintenance of water supply,gasoline, tunnels, and mines, waste disposal, parking lot, wharf, civil and military airport, as well as various illuminationsfor combat readiness.
2.Night construction condition has been improved to raise working efficiency and speed.
Major Features
1.4-sections telescopic mast can be extended by manual operation;
2.The light tower can be extended to 5.2 meters altitude fully,and its shooting angle can be manually adjusted at the lowest position easily;
3.4 retractable knightheads are able to support stably and reliably even on the rough ground;
4.Main power input industrial socket,enabling mains or other gensets to provide electricity for lighting,reduce unnecessary fuel consumption and noise pollution;
5.The galvanized mast and the powder coated canopy suit the outdoor enviroment for a long time.
