AWP8-1200
Platform Height 8000
Work Height 9700
Payload 125
Power AC/DC

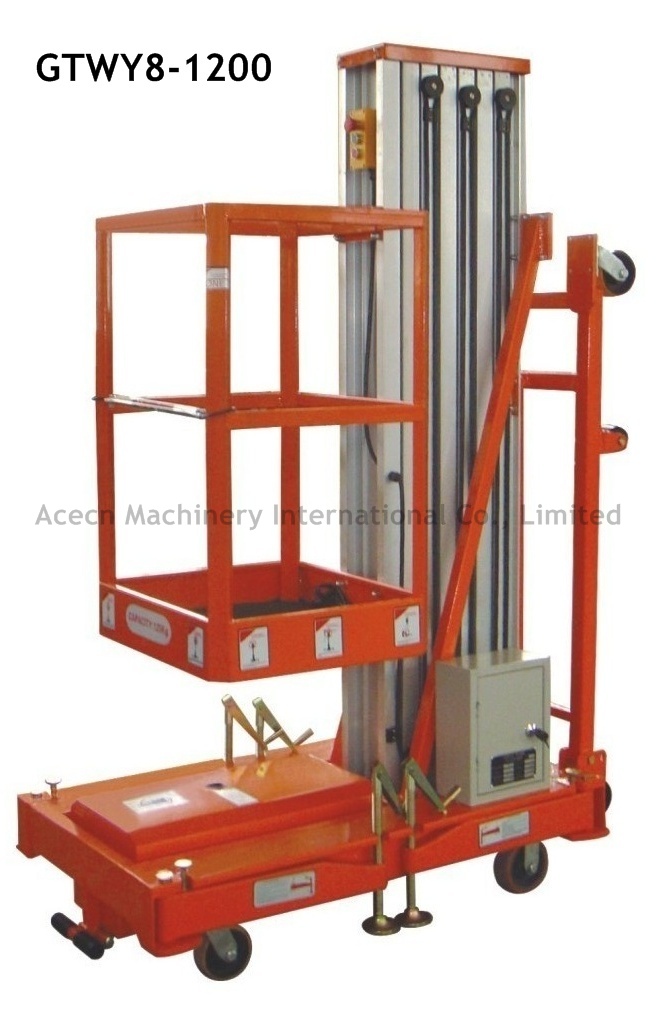

AWP8-1200
| Specification | TILTING ALUMINIUM ALLOY LIFTING PLORM | |||
| AWP6-1200 | AWP8-1200 | AWP10-1200 | ||
| Max.Platform Height(mm) | 6000 | 8000 | 10000 | |
| Working Height(mm) | 7700 | 9700 | 11700 | |
| Ground Clearance(mm) | 80 | |||
| Lift Rated Capacity（kg） | 150 | 125 | 125 | |
| Platform Size(mm) | 650*600 | |||
| Outspread Size(mm) | 1930*1770 | |||
| Electrical Source | AC(v) | 220 | ||
| DC (v) | 24 | |||
| Battery v/Ah | 2*12/60 | |||
| Charger v/A | 24/10 | |||
| Lifting Moter | AC v/kw | 220/0.75 | ||
| DC v/kw | 24/2.0 | |||
| Overall Length(mm) | 1580 | |||
| Overall Width(mm) | 800 | |||
| Overall Heith(mm) | 1950 | 2050 | 2150 | |
| Overall Net Weight | AC(kg) | 300 | 350 | 400 |
| DC(kg) | 330 | 380 | 430 | |
The Tilting Aluminium Alloy Lifting platform has the following characteristics:
1.Lift or fall steadily: The seamless transmission is used between the lifting masts, thus minimizing the amount of sway after lifting.
2.Safe and reliable: The four turning stabilizers of the unit connected to the four corners of the chassis support the MEWP duringwork. They are designed for leveling regulation and preventing inclination. They are composed of stand bars and turning legs. The stand bars are installed in the turning legs. Extending out the turning legs before operating the unit enlarges the area of supporting. Therefore, the steadiness of the whole platform is guaranteed.
3.Convenient: The whole work platform is light because the lifting masts are made of alloy aluminum. The structure is compact and the volume is small, so only one person can move the equipment and carry it through a very narrow passage.
1.Lift or fall steadily: The seamless transmission is used between the lifting masts, thus minimizing the amount of sway after lifting.
2.Safe and reliable: The four turning stabilizers of the unit connected to the four corners of the chassis support the MEWP duringwork. They are designed for leveling regulation and preventing inclination. They are composed of stand bars and turning legs. The stand bars are installed in the turning legs. Extending out the turning legs before operating the unit enlarges the area of supporting. Therefore, the steadiness of the whole platform is guaranteed.
3.Convenient: The whole work platform is light because the lifting masts are made of alloy aluminum. The structure is compact and the volume is small, so only one person can move the equipment and carry it through a very narrow passage.
