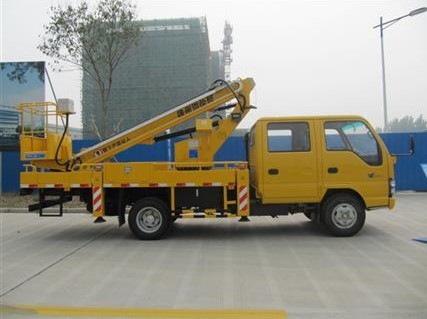

GTTM 12
GTTM 12

Telescopic boom
Max working height 13.1m;
Max working range 11.1m;

GTTM 12



GTTM 12
Items Units GTTM 12
Length mm 7170
Width mm 1942
Height mm 2858
Cab Capacity Persons 5
Weight kg 5250
Axle Load             Front kg 2200
Rear kg 3050
Max Speed km/h 95
Min Ground Clearance mm 190
Approach angle ° 22
Departure angle ° 12
Working performance
Basket Loading Capacity kg 200
Max Working Height m 13.1
Max Range @ Max Work Height m 1.9
Working Outreach m 5.8
Max Height @ Max Work Range m 7.7
Crane Max Lifting Weight (option)   kg 1300

Crane Max Lifting Height (option)   m 9

Rotation Speed r/min 02
Outriggers Acting Time Extract s ≤80
Extract s ≤80
Lower Boom Luffing Time s ≤40
Upper Boom Luffing Time s ≤40
Telescopic Boom Extent Time s ≤30
Hoisting Speed m/min 040
Superstructure Kit with slewing bearing and flang, PTO
Platform height m 11.1
Working height m 13.1
Outreach m 5.8
Dimension (L, W, H) mm 6320×1200×1870



Component

Description

Chassis

JMC JX1060TSG23/1061TSG23, or JAC HFC1065KRT

Engine

JMC JX493ZLQ3 diesel engine, power:85KW, Euro Ⅲ

Cab

Dual-row seat cab, allow 5 people including driver,
 with air conditioner and radio

Guardrail and Covering Plate

Fixed guardrail, height 650mm, aluminum-alloy anti-skid checker plate

PTO

Flexible shaft operation, PTO directly engages the gearbox.

Working Basket

Welding steel tube structure, dimension: 1000mm*650mm*1100,
safe work load: 200kg

Boom

Two-section articulating booms

Slewing Mechanism

360°continuous rotation

Outriggers

H-shape outriggers, can be adjust individually

Control Box

Control box at both basket and turret.

Hydraulic System

Electro-hydraulic control

Safety Device

Boom-outriggers interlock, leveling indicator, limit switch

Leveling System

Mechanical balance rods leveling

Others

Working light, engine stop-start switch, interphone,
emergency manual pump.

Option:

Crane

Telescopic boom, max lifting weight: 990kg/1300kg

Good flexibility

Utilize lightweight chassis with turbo diesel engine; the platform owns a
compact dimension, powerful and flexible.

High Efficiency

The maximum work height is 14.3m, and maximum work range is 6.3m.
Compare to similar product of the samework height, it has a wider work range.
 Excellent lifting capability enables maximum 1.3t weight and 9m height.

Superb Safety

Complete hydraulic lock in cylinder and interlock between boom and outriggers.
Also emergency manual pump, emergency stop switch, leveling indictor,
outriggers supporting sensor, limit switch and safety harness.
All devices assured workers safety.

Simple Operation

The operation system is simple and step-less speed control and
excellent micro-maneuvering.
