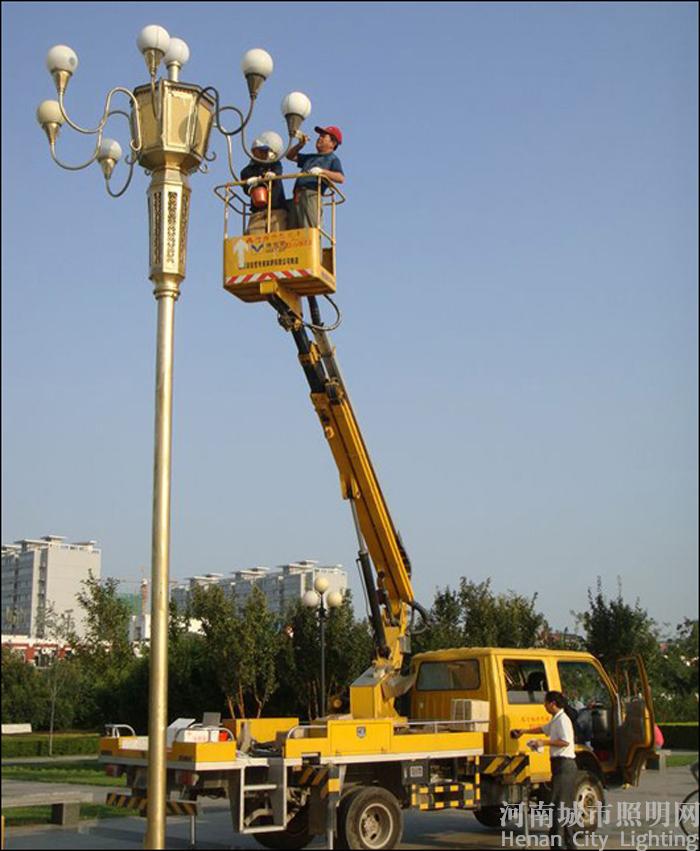

Articulating boom
Max working height 14.6m;
Max working range 12.6m;
GTTM 14
| Items | Units | Data | ||||
| Traveling | ||||||
| Length | mm | 7170 | ||||
| Width | mm | 1942 | ||||
| Height | mm | 2858 | ||||
| Cab Capacity | Persons | 5 | ||||
| Weight | kg | 5250 | ||||
| Axle Load | Front/Rear | kg | 2200/3050 | |||
| Max Speed | km/h | 95 | ||||
| Min Ground Clearance | mm | 190 | ||||
| Approach angle | ° | 22 | ||||
| Departure angle | ° | 12 | ||||
| Working performance | ||||||
| Basket Loading Capacity | kg | 200 | ||||
| Max Working Height | m | 14.6 | ||||
| Max Range @ Max Work Height | m | 1.9 | ||||
| Working Outreach | m | 7.1 | ||||
| Max Height @ Max Work Range | m | 7.7 | ||||
| Crane Max Lifting Weight (option) | kg | 1300 | ||||
| Crane Max Lifting Height (option) | m | 9 | ||||
| Rotation Speed | r/min | 0～2 | ||||
| Outriggers Acting Time | Extract/Extent | s | ≤80/≤80 | |||
| Lower Boom Luffing Time | s | ≤40 | ||||
| Upper Boom Luffing Time | s | ≤40 | ||||
| Telescopic Boom Extent Time | s | ≤30 | ||||
| Hoisting Speed | m/min | 0～40 | ||||
| Superstructure Kit with slewing bearing and flang, PTO | ||||||
| Platform height | m | 12.6 | ||||
| Working height | m | 14.6 | ||||
| Outreach | m | 7.1 | ||||
|
Component |
Description |
|
Chassis |
JMC JX1060TSG23/1061TSG23, or JAC HFC1065KRT |
|
Engine |
JMC JX493ZLQ3 diesel engine, power:85KW, Euro Ⅲ |
|
Cab |
Dua-row seat cab, allow 5 people including driver, with air |
|
Guardrail and Covering Plate |
Fixed guardrail, height 650mm, aluminum-alloy anti-skid checker plate |
|
PTO |
Flexible shaft operation, PTO directly engages the gearbox. |
|
Working Basket |
Welding steel tube structure, dimension: 1000mm*650mm*1100, |
|
Boom |
Two-section articulating booms |
|
Slewing Mechanism |
360°continuous rotation |
|
Outriggers |
H-shape outriggers, can be adjust individually |
|
Control Box |
Control box at both basket and turret. |
|
Hydraulic System |
Electro-hydraulic control |
|
Safety Device |
Boom-outriggers interlock, leveling indicator, limit switch |
|
Leveling System |
Mechanical balance rods leveling |
|
Others |
Working light, engine stop-start switch, interphone, emergency manual pump. |
Option:
|
Crane |
Telescopic boom, max lifting weight: 990kg/1300kg |
